This individual operation urinal control system is designed to flush a single urinal directly from the mains water supply. No cistern is required. The urinal is flushed when the user walks away. The units are easy to install and extremely versatile in their operation. Variable settings allow adjustable time delays between flushing, providing maximum efficiency and savings.
Pack includes:

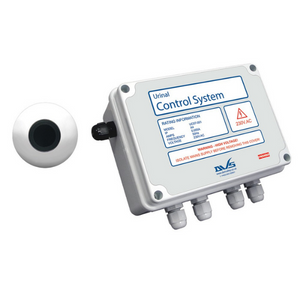

- 1 x Urinal control system box with built-in power supply
- 1 x Passive infra-red sensor with 50mm diameter stainless steel bezel
suitable fo 50mm thick wall boards / panels. Thread extenders are available as
additional cost option.
- 1 x Solenoid valve
- 1 x 3 metre cable
- Spade connectors
Key features:
- Flushes when user walks away from urinal
- Up to 80% savings on water costs
- Extremely reliable, low maintenance
- 2 year guarantee
- Low power consumption
- Solenoid valve included
- Includes power PSU
- Adjustable delay time
- Janitorial flush (After 12 Hours of Non-Use)
Options:
Low-Pressure Kit: If water pressure is below 0.5 BAR, the model with the "low pressure kit", including a 7.1mm valve, should be selected below.

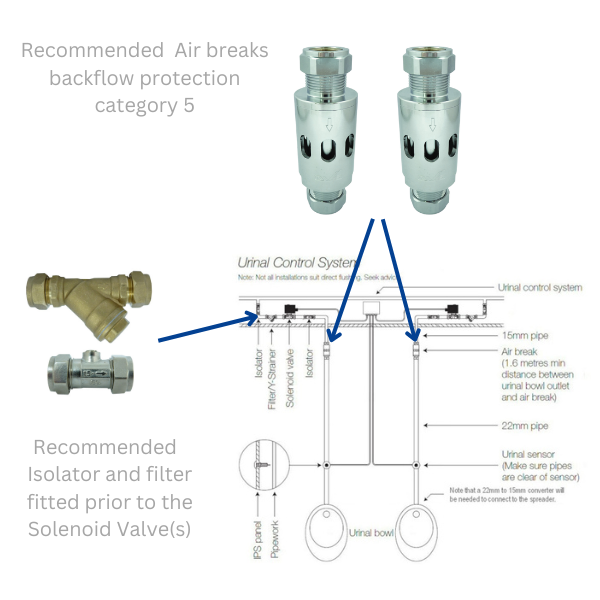

Air Break (back-flow preventer): Required to comply with water regulations to prevent contamination of mains water supply.

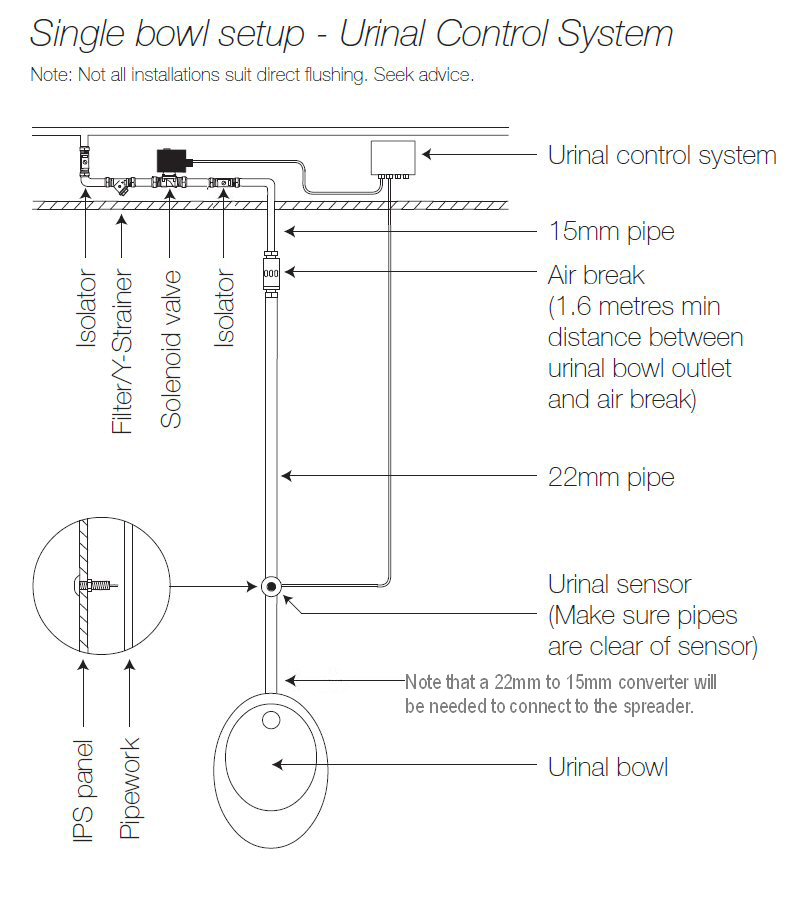

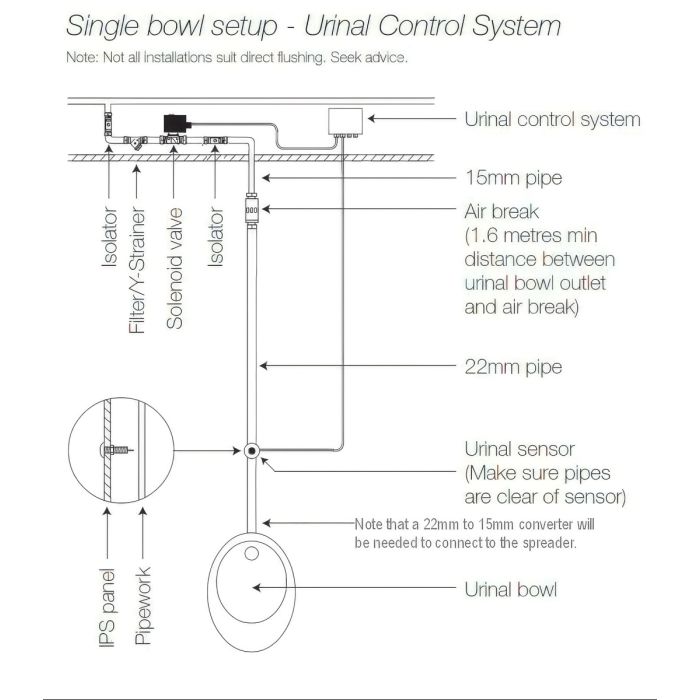

Isolators and Filters: These are standard plumbing fittings but can be added as an option for convenience. It is recommended that an isolation valve is fitted either side of the solenoid valve. If the water flow through the solenoid valve is too fast spillage from the air break may result. To remedy this, the isolation valve after the solenoid valve should be adjusted to reduce the flow. Restricting the flow using the isolation valve before the solenoid valve may cause the soelnoid valve to operate incorrectly. It is also recommended that a Y-filter is fitted before the solenoid valve to prevent debris from constricting the flow through the solenoid valve or urinal spreader.
Sensor Thread: Brass thread extenders are available to suit
different wall thickness.
If a thread extender is required please select from the options below (100mm,
150mm and 250mm available.)
 DVS Urinal Control System Instruction Manual
(492k)
|
