Self closing exposed connection knee operated timed flow valve with basin / deck spout. Suitable for commercial and industrial environments and for those with restricted hand movement.

Valve:
The through wall mounted lever articulates in any direction and each activation gives approximately 15 seconds flow. Manufactured from brass with a chrome plated finish and suitable for connecting to a temperature controlled warm water supply.

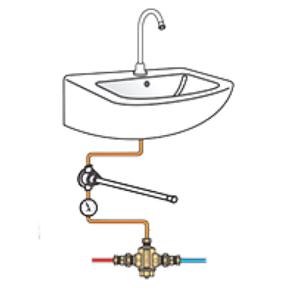

A multi directional lever operated valve allows the user to deliver hot, cold or mixed temperature water in a controlled and hygienic way. The valves are simple to install, easy to use, vandal resistant and durable making them ideal for wide range of applications

Inlet and outlet are compression fittings to suit 15mm diameter pipe.

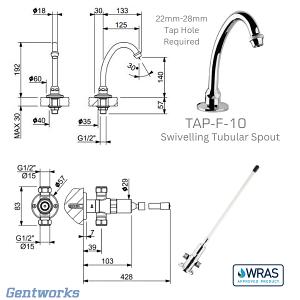

Spout:
Deck / basin swivel spout for use with knee operated timed flow valve, manufactured from stainless steel tube and polished to a finish. (½in) BSP male inlet connection.

28mm tap hole.

Pressures and Operating Conditions:
Maximum operating pressure: 5 bar
Minimum operating pressure: 0.5 bar
Maximum inlet Temperature: 65oC
Timed flow at 1 bar: 15 ± 3 seconds
