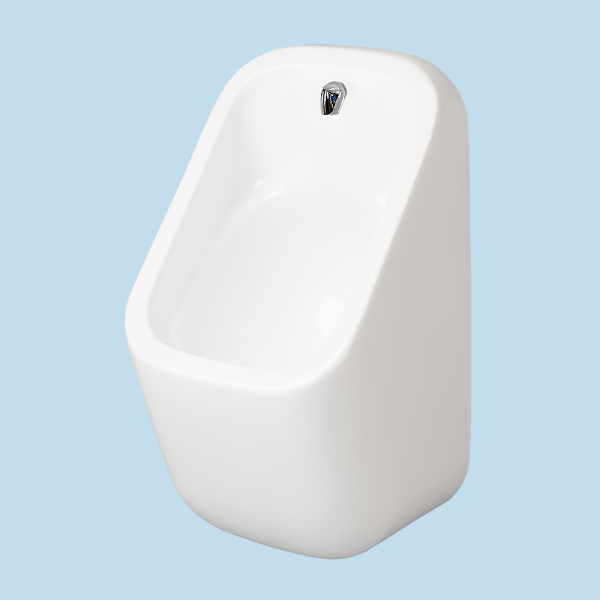

ArcSquare Concealed Trap Urinal – bowl with back-inlet flushing spreader and wall brackets only. No cistern included.

A modern, square-shaped urinal bowl designed for fully concealed installations. Ideal for most commercial washrooms, including schools, offices, leisure facilities and hospitality venues. With waste trap and flushing pipes hidden, it delivers a sleek, stylish look while also making cleaning quicker and easier.

This urinal can be supplied with appropriate concealed cisterns, spreaders, and sparge pipes for one, two, or three-bowl installations or for connection to a mains direct-flush system.

Bowl Dimensions:  Height = 570mm  Width = 310mm  Projection from wall = 310mm Weight =18.5 KG

Pack Type: Designed for concealed installations with the cistern mounted behind panels or within a stud wall, and the trap fully enclosed inside the urinal. The installation should include access panels within the service duct behind the urinals to allow easy maintenance.

Pack includes:
- 1 x Ceramic Conceald Trap Urinal
- 1 x Rear Entry Flushing Spreader
- 2 x Wall Hanger Brackets
- 1 x Domed Waste Outlet - White

Optional Traps:
- McAlpine L10 Trap with Cleaning Eye

Click on the Product Data Sheets tab for downloadable instructions and data sheets.
