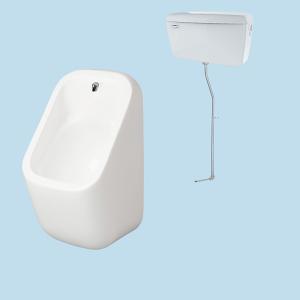

ArcSquare Single User Urinal Set – Concealed Trap, Flushpipes & Cistern

More stock due in around 10th February

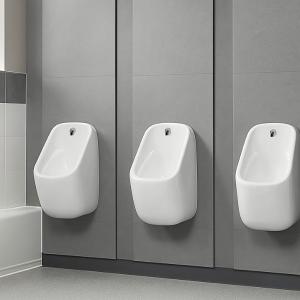

A modern, square-shaped urinal bowl designed for fully concealed installations. Ideal for most commercial washrooms, including schools, offices, leisure facilities and hospitality venues. With waste trap and flushing pipes hidden, it delivers a sleek, stylish look while also making cleaning quicker and easier. This urinal set comes with everything you need, apart from the optional trap and PIR flush controller.

Bowl Dimensions:  Height = 570mm  Width = 310mm  Projection from wall = 310mm

Pack Type: Designed for concealed installations with the cistern mounted behind panels or within a stud wall, and the trap fully enclosed inside the urinal. The installation should include access panels within the service duct behind the urinals to allow easy maintenance.

Pack includes:
- 1 x Ceramic Conceald Trap Urinal
- 1 x 4.5L Compact Hideaway Dudley Auto Cistern – 505×146×285mm
- 1 x Concealed Stainless Steel Sparge Pipe Set with pipe clips (for 1 urinal)
- 1 x Rear Entry Flushing Spreader
- 1 x Pair of Urinal Wall Hangers
- 1 x Domed Waste Outlet - White

Optional Traps:
- McAlpine L10 Trap with Cleaning Eye

Click on the Product Data Sheets tab for downloadable instructions and data sheets.
