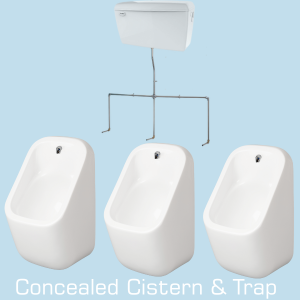

ArcSquare Three User Urinal Set – Concealed Traps, Flushpipes & Cistern

More stock due in around 10th February

A modern, square-shaped three urinal bowl set designed for fully concealed installations. Ideal for most commercial washrooms, including schools, offices, leisure facilities and hospitality venues. With waste traps and flushing pipes hidden, it delivers a sleek, stylish look while also making cleaning quicker and easier. The pack includes all components from the cistern to the waste. Traps and and a PIR flush controller are available as optional extras.

Bowl Dimensions:  Height = 570mm  Width = 310mm  Projection from wall = 310mm

Pack Type: Designed for concealed installations with the cistern mounted behind panels or within a stud wall, and the trap fully enclosed inside the urinal. The installation should include access panels within the service duct behind the urinals to allow easy maintenance.

Pack includes:
- 3 x Ceramic Conceald Trap Urinal
- 1 x 6/9L Compact Hideaway Dudley Auto Cistern – 505×146×285mm
- 1 x Concealed Stainless Steel Sparge Pipe Set with pipe clips (for 3 urinals)
- 3 x Rear Entry Flushing Spreaders
- 3 x Wall fixing brackets
- 3 x Domed Waste Outlets - White

Optional Traps:
- McAlpine L10 Traps with Cleaning Eye

Click on the Product Data Sheets tab for downloadable instructions and data sheets.
