We've streamlined our range and no longer stock this product. Please visit our Direct Mains Water Supply Controls for Individual Urinals webpage or see the related products below.

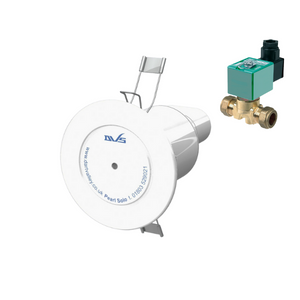

The KWC DVS UC01-027 Pearl Solo is a suspended ceiling urinal control for a single urinal bowl without a cistern. This mains powered unit is the size of a mini-downlighter, with a narrow beam, and will only be activated if a user stands under the beam for 5 seconds or more.  When the user walks away there is a 3 second delay before the controller flushes for the set number of seconds.

For concealed installations where the flush pipe and spreader water connection are hidden behind panels or a stud wall, it is recommended to use a Pearl Solo unit for each urinal. To avoid interference, make sure to position LED lights away from these IR devices.

Includes:

- Solenoid valve for connection to water supply
- Sensor, incorporating flush controller system, for fitting into ceiling above urinals
- power transformer

Features:
- Up to 80% savings on water costs
- Extremely reliable and low maintenance
- Passive infra-red sensor, detection indicated by a flashing green light
- Low power consumption
- Single valve output
- Default pre-set settings
- adjustable flush period
- Valve open button
- Janitorial flush (if sensor not triggered for 12 hours)

Air Break (back-flow preventer): Required to comply with water regulations to prevent contamination of mains water supply.

Isolators and Filters: These are standard plumbing fittings but can be added as an option for convenience. It is recommended that an isolation valve is fitted either side of the solenoid valve. If the water flow through the solenoid valve is too fast, spillage from the air break may result. To remedy this, the isolation valve after the solenoid valve should be adjusted to reduce the flow. Restricting the flow using the isolation valve before the solenoid valve may cause the soelnoid valve to operate incorrectly. It is also recommended that a Y-filter is fitted before the solenoid valve to prevent debris from constricting the flow through the solenoid valve or urinal spreader.
