ArcSquare Single User Urinal Set – Concealed Trap, Flushpipes & Cistern

ArcSquare Single User Urinal Set – Concealed Trap, Flushpipes & Cistern

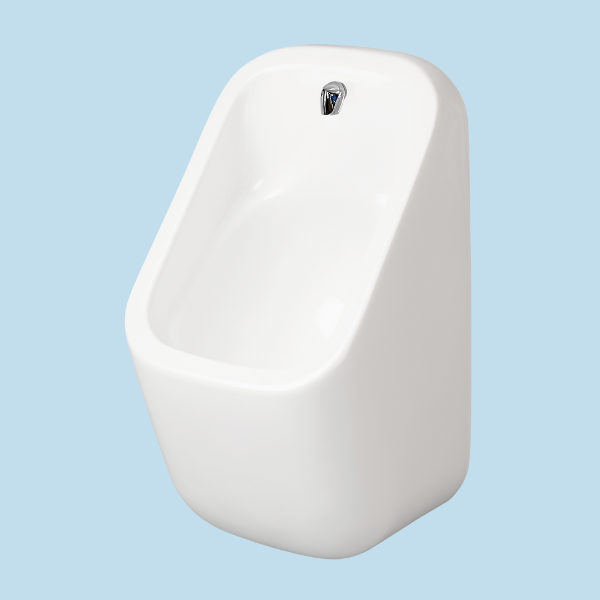

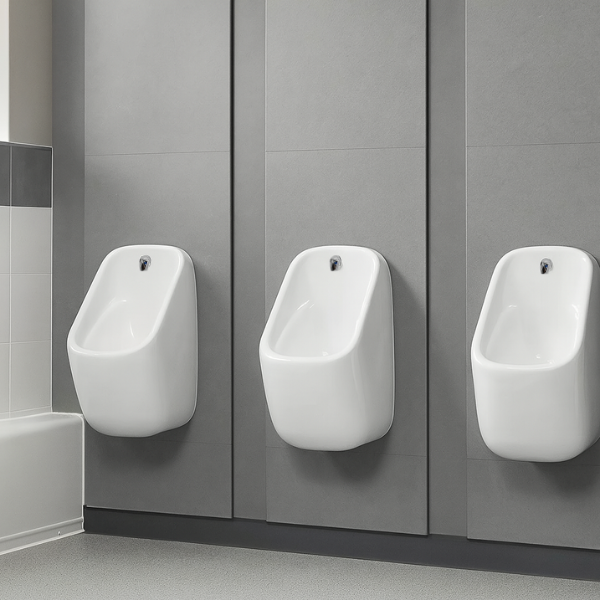

A modern, square-shaped urinal bowl designed for fully concealed installations. Ideal for most commercial washrooms, including schools, offices, leisure facilities and hospitality venues. With waste trap and flushing pipes hidden, it delivers a sleek, stylish look while also making cleaning quicker and easier. This urinal set comes with everything you need, apart from the optional trap and PIR flush controller.

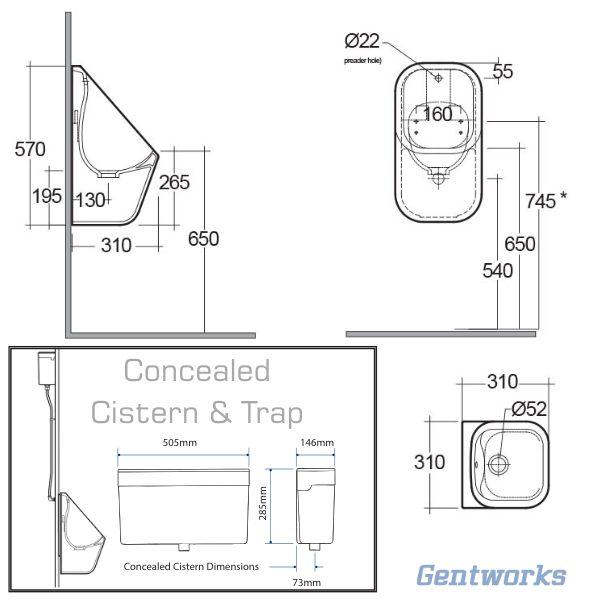

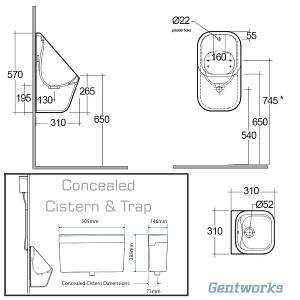

Bowl Dimensions:  Height = 570mm  Width = 310mm  Projection from wall = 310mm

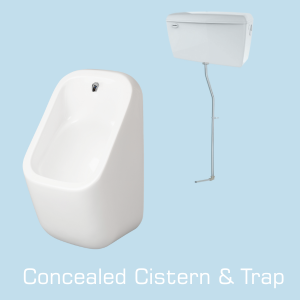

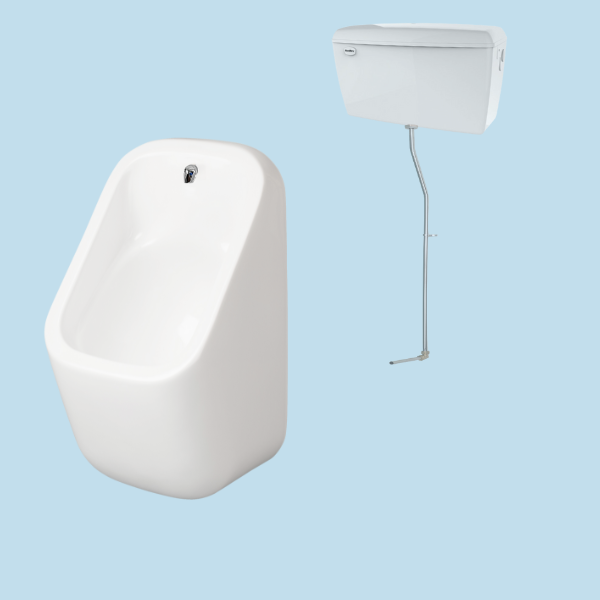

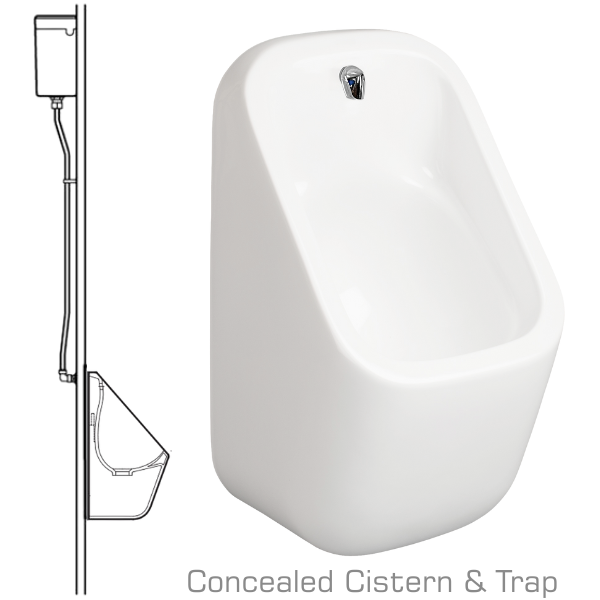

Pack Type: For concealed installation, with the cistern mounted behind panels or a stud wall. Includes everything required from the cistern down to the waste. Traps are available as an option.

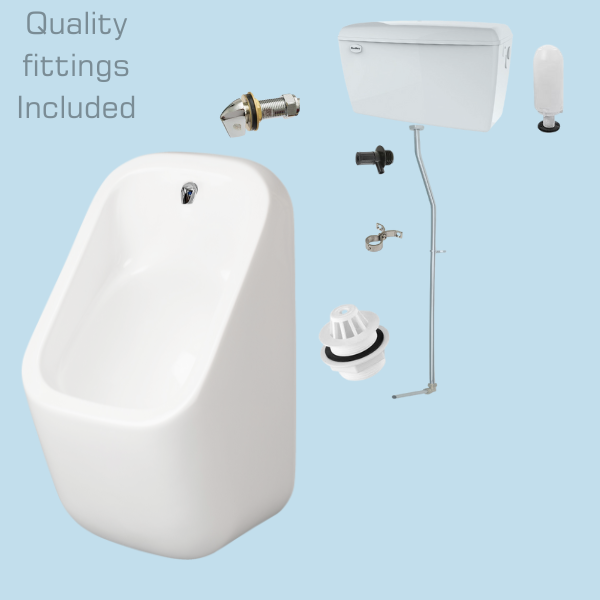

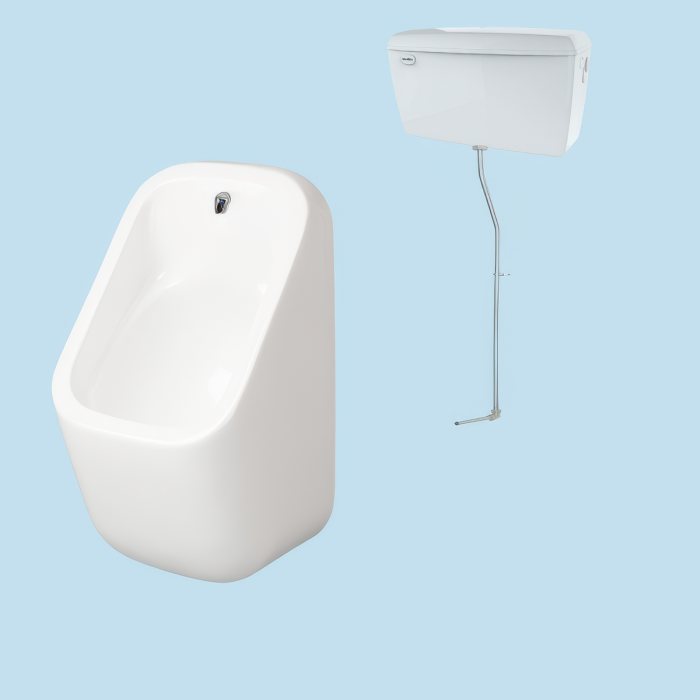

Pack includes:
- 1 x Ceramic Conceald Trap Urinal
- 1 x 4.5L Compact Hideaway Dudley Mirage Auto Cistern – 505×146×285mm
- 1 x Concealed Stainless Steel Sparge Pipe Set with pipe clips (for 1 urinal)

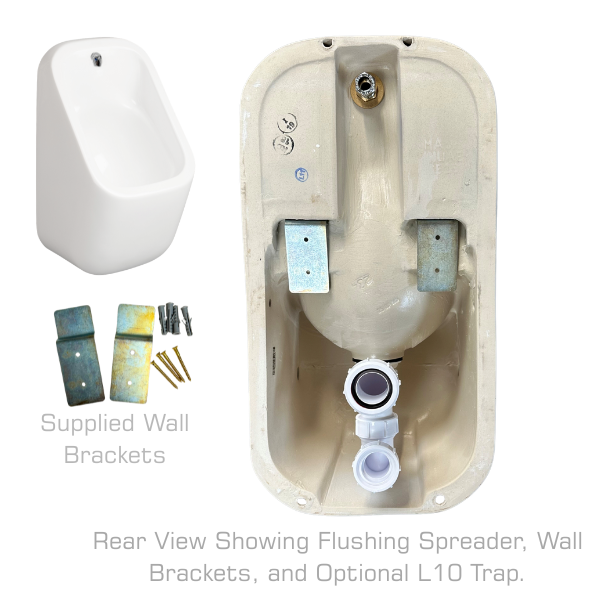

- 1 x Rear Entry Flushing Spreader
- 1 x Pair of Urinal Wall Hangers
- 1 x Domed Waste Outlet - White

Optional Traps:
- McAlpine L10 Trap with Cleaning Eye
