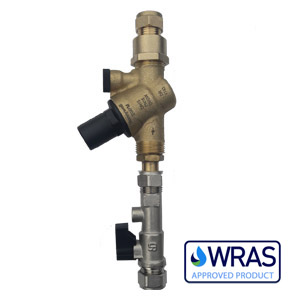

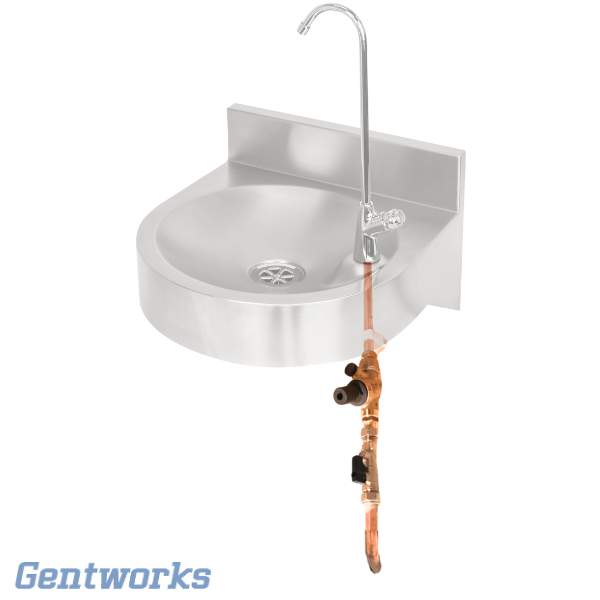

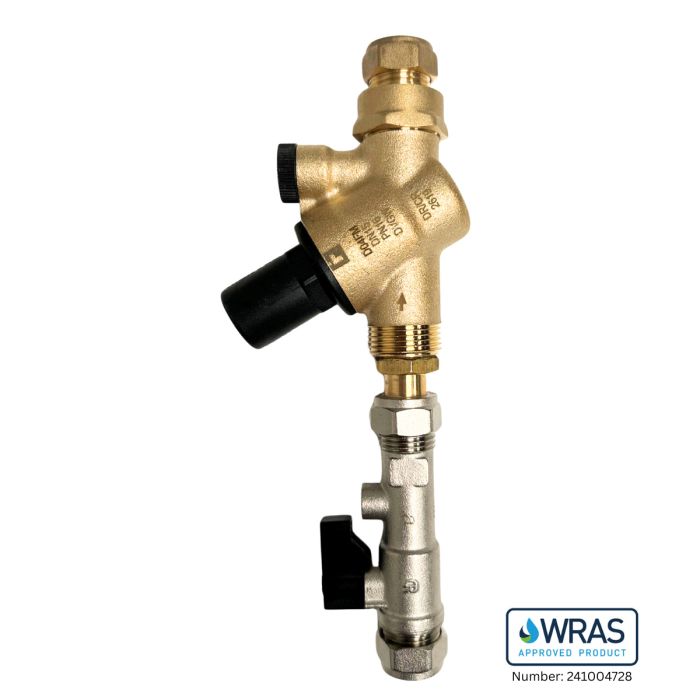

Drinking Fountain Mains Water Connection Kit

This mains water installation rail kit is designed to help connect drinking fountains to a mains water supply pipe. It helps protect the drinking fountain by preventing the water pressure from exceeding its maximum pressure rating, while the double check valve prevents the backflow of liquid.

• isolation (shut off) / double check valve
• Honeywell adjustable pressure reducing valve
• inlet - 15mm compression fitting
• outlet - 3/4" BSP and supplied with 15mm compression fitting
• max. inlet pressure is 16 bar
• outlet pressure 1.5-6 bar adjustable
• length 200mm
• installation can be vertical or horizontal

The kit includes isolation valve, double non-return valve (also known as a check valve) and Honeywell adjustable pressure limiting valve.

If supplying a drinking dispenser valve, the optimal pressure is 1.5-2 bar, and it should not exceed 3 bar.
