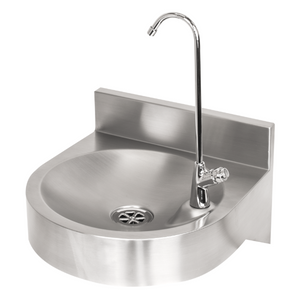

This durable wall-mounted drinking fountain is constructed from 1.5mm thick satin-polished stainless steel. It can be installed at either adult or junior height for added versatility. To ensure safety, the unit boasts a smooth rounded design, eliminating sharp corners that could pose a risk to users.

• Smooth rounded design
• 1.5mm thick grade 304 satin stainless steel
• Raised tap landing area
• 32mm waste outlet supplied
• Integral splashback
• Suitable for indoor or outdoor installation

This model comes with appropriate wall mounting brackets and is manufactured in one piece from grade 304 stainless steel.

For ease of use, the dispenser is situated to one side, on a raised landing area. The integrated splashback provides for ease of cleaning.

This stainless steel drinking fountain is suitable for outside installation but will need to be isolated and drained down during periods of freezing weather to prevent damage to the valve and pipework.

Supplied with wall bracket, 32mm grated waste fitting and bottle filling swan-neck spout complete with water inlet fitting to suit 15mm diameter pipework.

Depth: 350mm (projection from wall)
Height: 225mm (including 77mm high rear upturn but excluding dispenser)
Recommended mounting heights: Top of front Apron to finished floor Junior 762mm, Adult 915mm

Dispenser type: Self-closing push button valve fitted with a 255mm high, chrome plated, fixed brass swan-neck spout. Water only flows whilst the button is depressed. For safety reasons, glass/bottle fillers are not designed to withstand heavy impact and should only be installed in areas with supervision or low risk of vandalism.

Optional but recommended is our Mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. Protects the drinking fountain by preventing the maximum pressure rating being exceeded. Double check valve prevents backward flow of liquid. Optimal pressure is 1.5-2 bar; do not exceed 3 bar.
