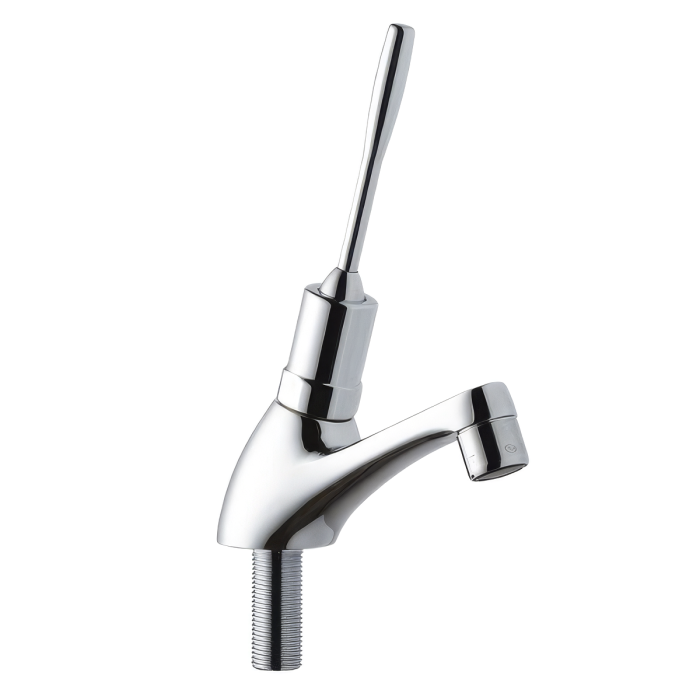

Toggle Lever Timed Flow Basin Tap

This self-closing toggle lever handle deck mounted tap is easy to grip and can be operated by either hand or wrist making the tap ideal for those with limited dexterity and a great choice for primary schools and nurseries. This is a single-feed tap for either cold or pre-mixed warm water. To regulate temperature for warm water supply, we recommend using a TMV3 thermostatic mixing valve. Please note, this is not a mixer tap.

Features:

• chrome plated
• WRAS Approval Number: 2106004
• single feed 1/2" BSP connection
• 22mm/28mm tap holes required
• approx. 8-12 seconds time flow
• multi directional lever
• supplied as single tap
• easy for young children to operate
• ideal for use in unsupervised areas to stop water wastage

Technical Specification:

• maximum operating pressure: = 5.0 bar static
• minimum operating pressure = 0.5 bar dynamic
• maximum inlet temperature = 80°C
• timed flow = 8 to 12 seconds
