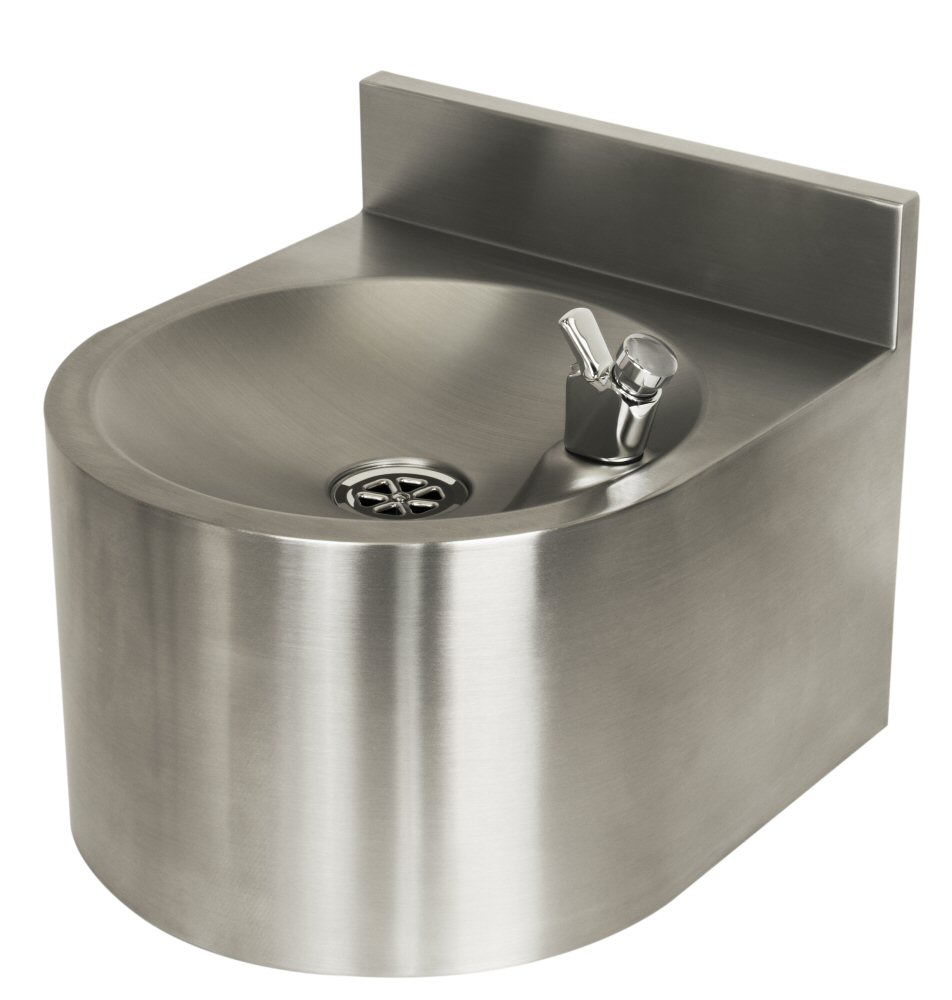

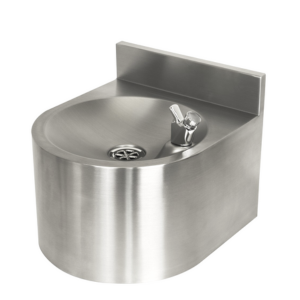

Drinking Fountain - Wall Mounted Stainless Steel with Undershroud and Bubbler Valve Tap

Price (Inc VAT)

£202.80

Our Price (Ex VAT)

£169.00

Delivery Time 1 to 4 working days
Ref GW-362-WRAS-B
Dispenser type
Quantity

• Smooth rounded design
• 1.5mm thick grade 304 satin stainless steel
• Raised landing area around bubbler tap
•     WRAS approved bubbler (tap) supplied as standard
•     32mm waste outlet supplied
•     Under-shroud provides protection for water connections
•     Integral splashback
•     Side positioned bubbler for optimum flow trajectory
•     Suitable for indoor or outdoor installation
•     Ideal for schools and public amenities

This robustly made wall mounted drinking fountain is constructed from 1.5mm thick satin polished stainless steel. It can be installed for adult or junior height.

For safety purposes, the unit features a smooth rounded shape, avoiding sharp corners which could cause injury to the user.

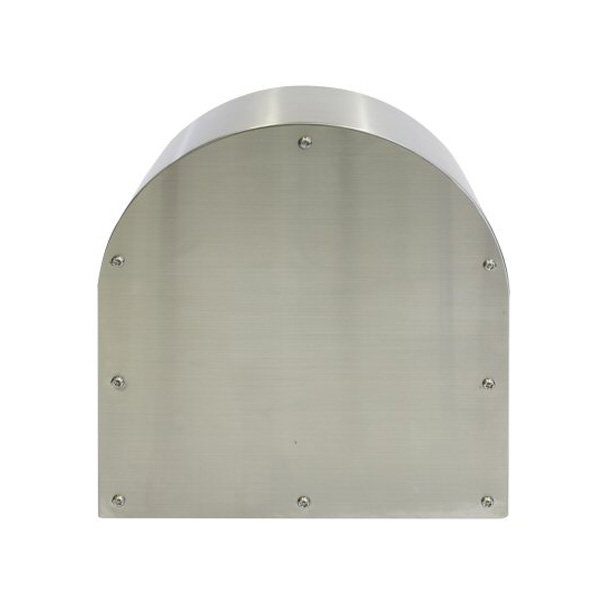

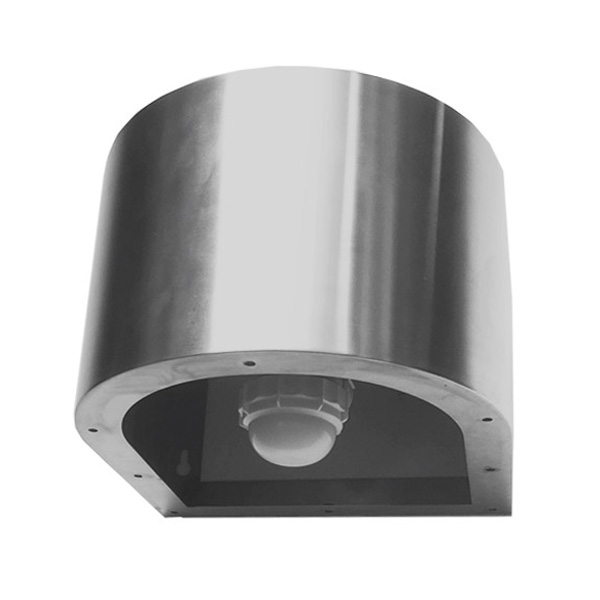

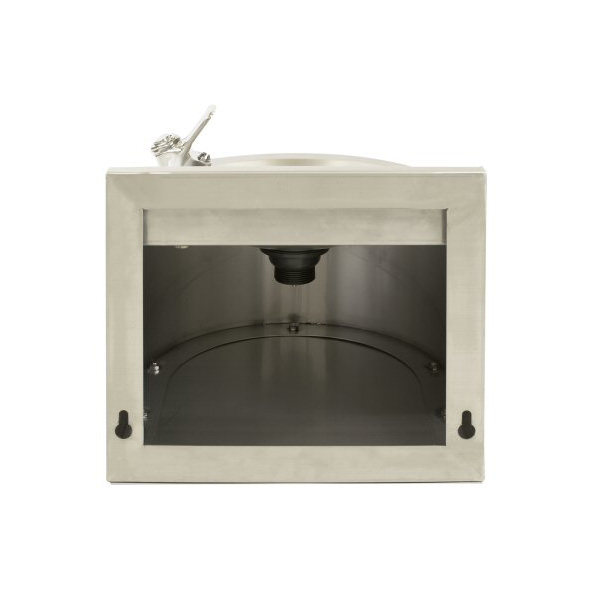

This model comes with appropriate wall mounting brackets and is manufactured in one piece from grade 304 stainless steel. It features a 215mm deep under-shroud and a removable baseplate which allow the water inlet and waste connections to be concealed. The baseplate can be left unfitted if through-wall inlet and outlet connections are not possible.
For ease of use, the bubbler valve is situated to one side, on a raised landing area and features a shielded outlet nozzle. The integrated splashback provides for ease of cleaning.

This stainless steel drinking fountain is suitable for outside installation but will need to be isolated and drained down during periods of freezing weather to prevent damage to the valve and pipework.


Supplied with wall bracket, security screw removal key, 32mm grated waste fitting and a chrome plated brass shielded bubbler complete with water inlet fitting to suit 15mm diameter pipework.

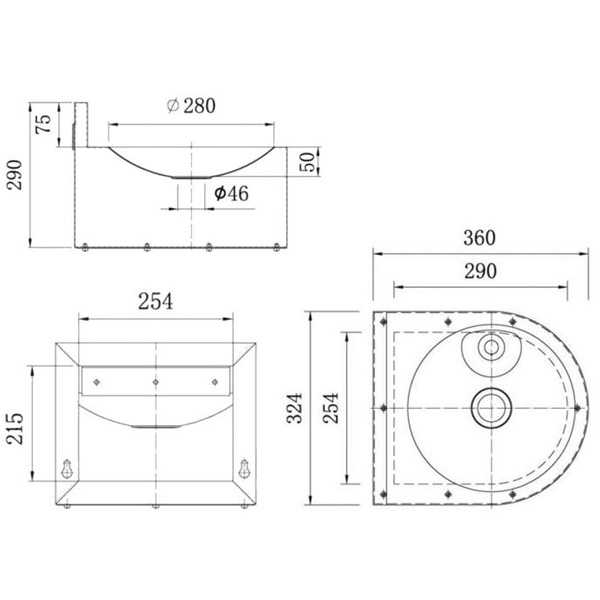

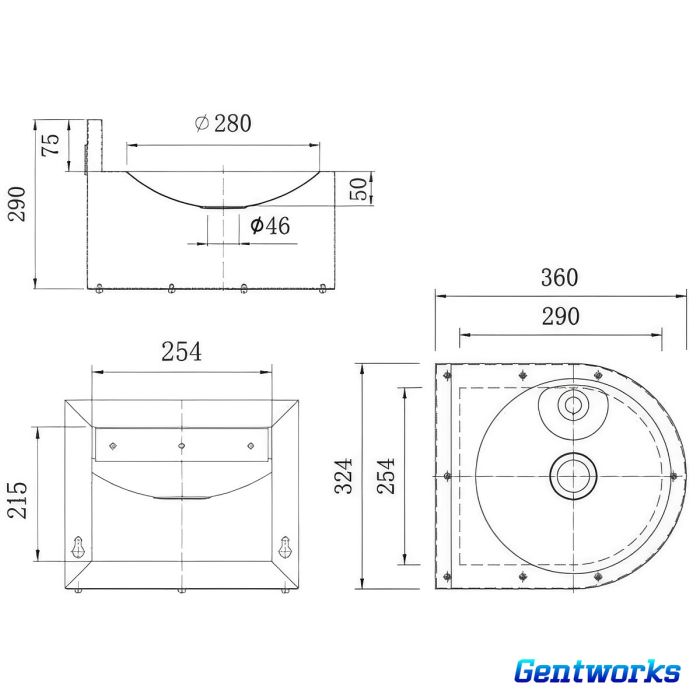

Depth: 360mm (projection from wall)
Height: 290mm (including 75mm high rear upturn but excluding bubbler)
Recommended mounting heights: Top of front Apron to finished floor; Junior 762mm, Adult 915mm

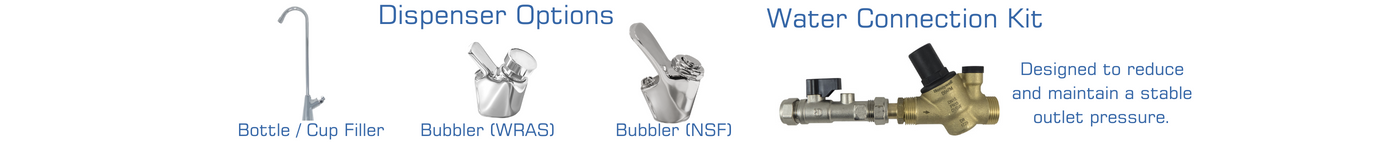

DISPENSER OPTIONS:

Drinking fountains with bubblers provide a jet of water to the user under normal mains pressure which does not need a cup or drinking vessel.

WRAS approved bubbler tap, supplied as standard with the drinking fountain a chrome press button drinking water bubbler valve (tap) approved product in accordance with UK water regulations.

NSF approved bubbler tap, heavy duty shielded chrome press button drinking water bubbler valve (tap) with easily replaceable self-contained Pro-Flo™ cartridge. Product is certified to NSF/ANSI 372. If you require this option please select the dispenser type above.

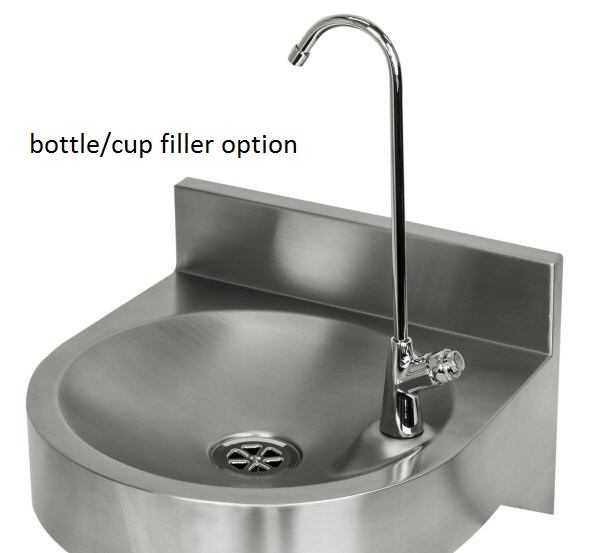

Bottle / Cup filler: self-closing push button valve fitted with a 255mm high, chrome plated, fixed brass swan-neck spout. Water only flows whilst the button is depressed. For safety reasons, glass/bottle fillers are not designed to withstand heavy impact and should only be installed in areas with supervision or low risk of vandalism. If you require this option please select the dispenser type above.

Optional but recommended is our Mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. Protects the drinking fountain by preventing the maximum pressure rating being exceeded. Double check valve prevents backward flow of liquid.
