GW6-15 Tanami Ceramic Waterless Urinal

GW6-15 Tanami Ceramic Waterless Urinal

GW6-15 Tanami Ceramic Waterless Urinal
Our Price (ex VAT)
Price (inc VAT)


Recommended waste connector fitting
Replacement valve core
Bactericidal Cleaner for cleaning/sluicing
Delivery Time 2 to 3 working days

  • Description

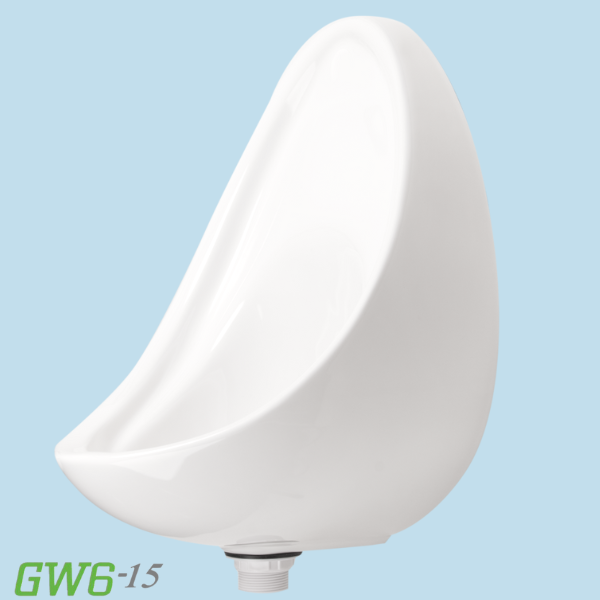

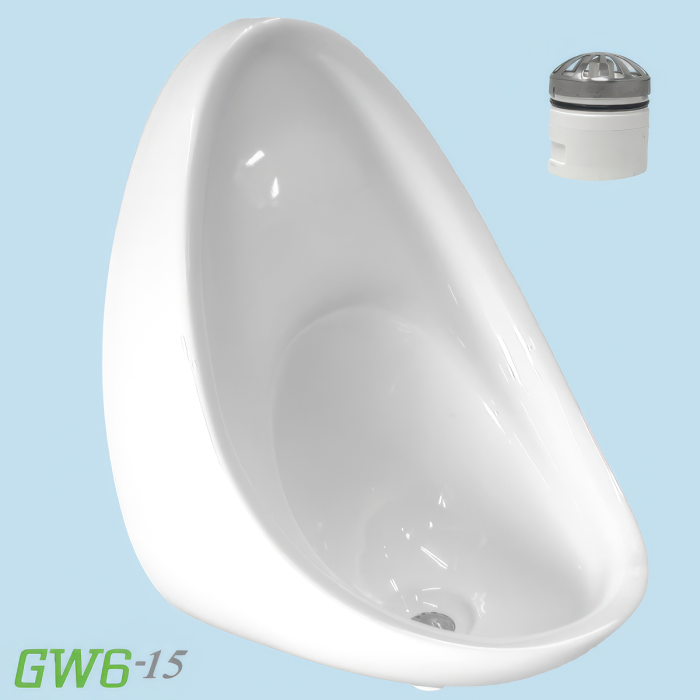

    GW6-15 Tanami Waterless Urinal Bowl

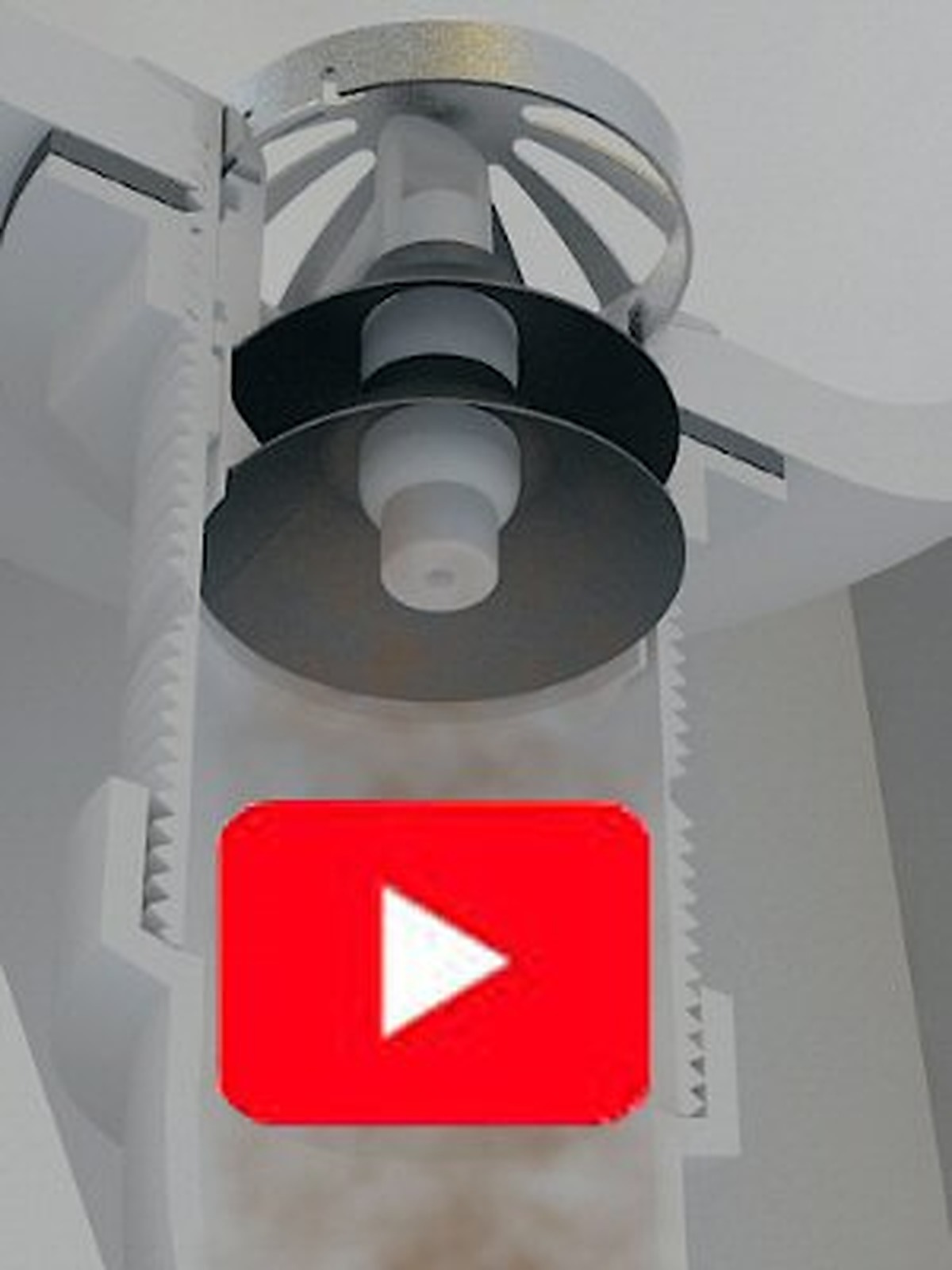

    YouTube about GW6-15The GW6-15 Tanami waterless urinal bowl uses the same valve and "snorkel" technology as the popular GW6 cartridge.The urinal is manufactured in ceramic and is suitable for exposed pipework. The Tanami now incorporates the latest version of the GW6-15 valve core with much faster drainage - approximately 12 litres per minute. This allows for more effective sluicing of the waste pipes to keep them even cleaner. Chemical resistance has also been much improved, particularly against bleach, to which silicone valves are particularly vulnerable. The dual valves are now manufactured in a special silicone to reduce the chance of damage from harsh cleaning chemicals, although these are still best avoided in order to maximise the life of the cartridge.

    Note:  The bowl shown in the YouTube video demonstrating the GW6-15 urinal system is not the Tanami.

    Key Benefits:

    • Saves water, thus reducing energy and emissions
    • Reduced expenditure on water and related sewerage costs
    • No floods
    • Unique dual valve technology for added protection against odours
    • Small, replaceable GW6-15 valve core typically lasts for 6-12 months
    • No sealant required
    • High drainage rate
    • Manufactured in ceramic
    • No trap required - connects directly to waste

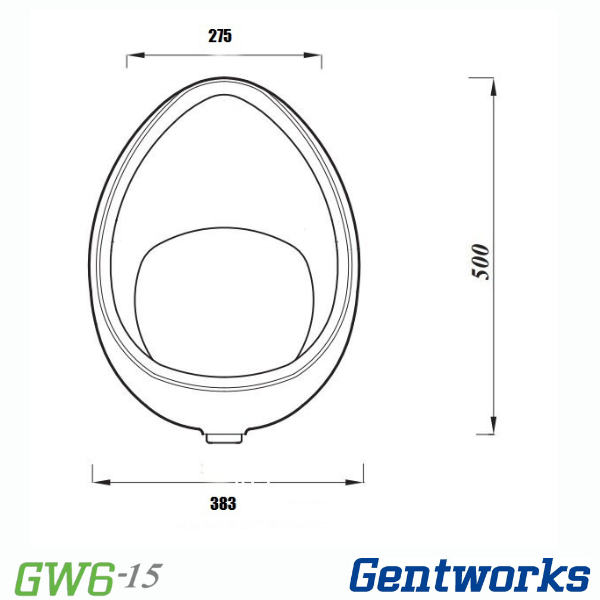

    Bowl Dimensions:  Height = 500mm     Width = 383mm     Projection from wall = 303mm
    - 1 x GW6-15 Tanami waterless urinal
    - 1 x GW6-15 housing, valve and removal key
    - 2 x Steel wall hangers
      About GW6-15 Tanami
      Cleaning & Maintenance
      Sluicing and Cleaning

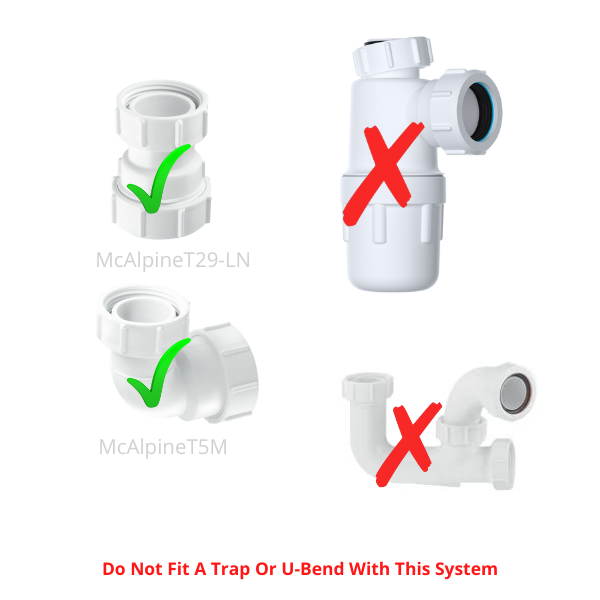

    Recommended Waste Fittings
    For vertical waste pipe — McAlpine T29-LN 1½" Multifit x Female BSP Straight Coupling
    For horizontal waste pipe— McAlpine T5M or T5M-A 1½" 90° Multifit Bend x BSP Coupling
    Instead of a fluid barrier, the GW6-15 valve uses a silicone double-skirt valve which is tolerant of both water and common cleaning chemicals.

    See replacement valves for GW6-15

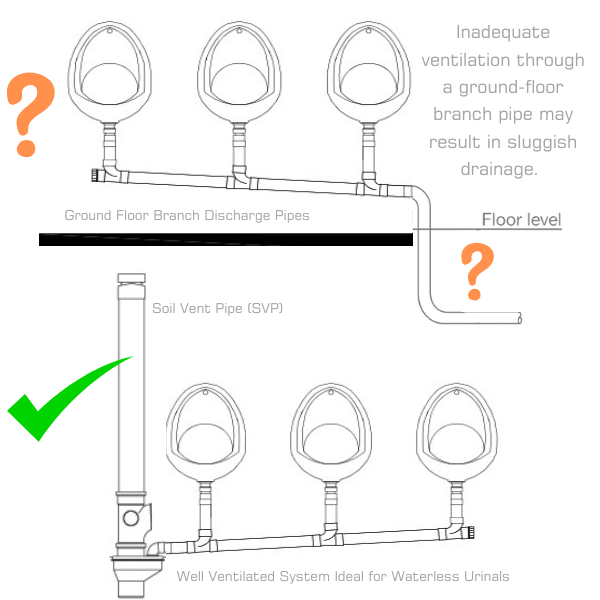

    How to avoid blockages in waste pipes
    Whilst the waste pipes of waterless urinals block less frequently than for most flushed urinals, uric acid salts can still form a sludge which eventually could cause a blockage. Sludge can be a particular problem if the waste pipes are shared with sinks or are poorly configured.  Gentworks recommends periodic sluicing with Bactericidal Cleaner to break down this sludge and carry it away into the main drain. The GW6-15 valve can be sluiced regularly; once every 2 to 4 weeks is recommended.  The solution used should be approximately 1 part Bactericidal Cleaner to 9 parts warm water from the washroom hot tap. If Bactericidal Cleaner is not available, using some soap in warm water instead will aid drainage.
  • More Product Info

    All Gentworks GW6-15 Tanami urinals are usually in stock and delivered in 2 to 3 working days but please contact us if you need them faster. The standard delivery charge for UK mainland is £10 per consignment. For locations outside of the UK mainland, including UK islands and Ireland, delivery costs will vary depending upon the size and weight of the consignment. Delivery may also take longer. Please call 0345 202 4535 for a quote and further information.

    The delivery times stated for this product are representative of what we achieve in 95% of cases for this specific product. If we have reason to believe that one or more of the items in your order will not be delivered within the stated time, we will contact you as soon as possible with a new delivery date. Please note that we are unable to specify the time of day your order will be delivered and all goods must be signed for. At time of delivery, please check goods for damage in transit before signing for them in order to avoid disputes over when and where any damage was caused. All goods are checked thoroughly before leaving the warehouse.
