GW6 Karoo Compact Ceramic Waterless Urinal

GW6 Karoo Compact Ceramic Waterless Urinal

GW6 Karoo Compact Ceramic Waterless Urinal
Our Price (ex VAT)
Price (inc VAT)


Replacement valve core
Bactericidal Cleaner for cleaning/sluicing
Concealed waste fitting
Delivery Time 2 to 3 working days

  • Description

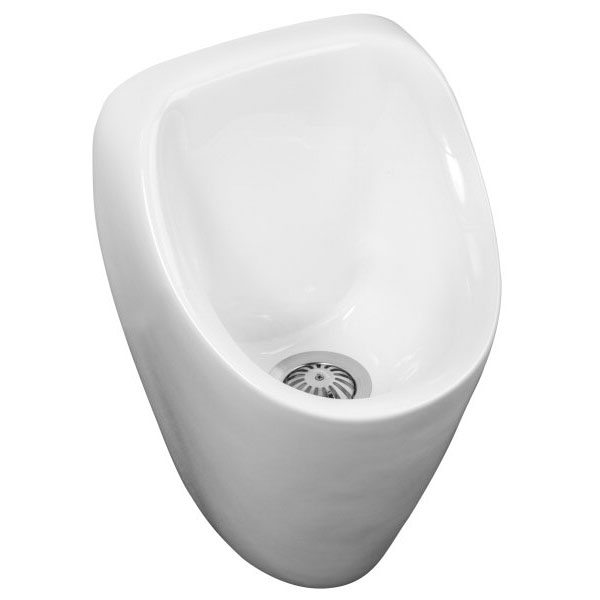

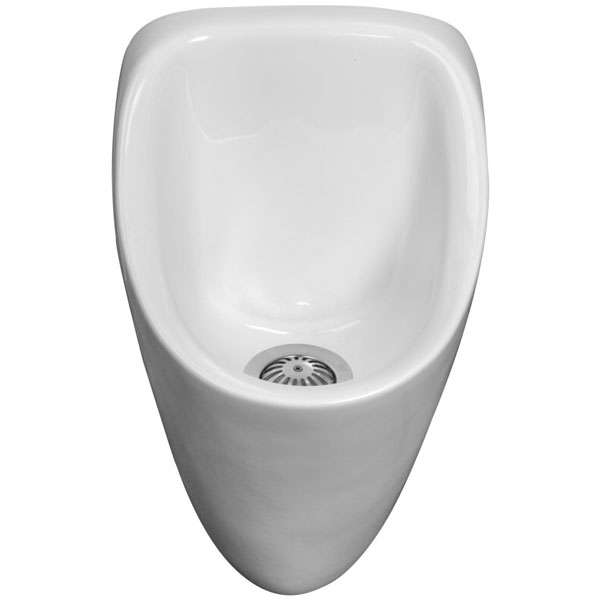

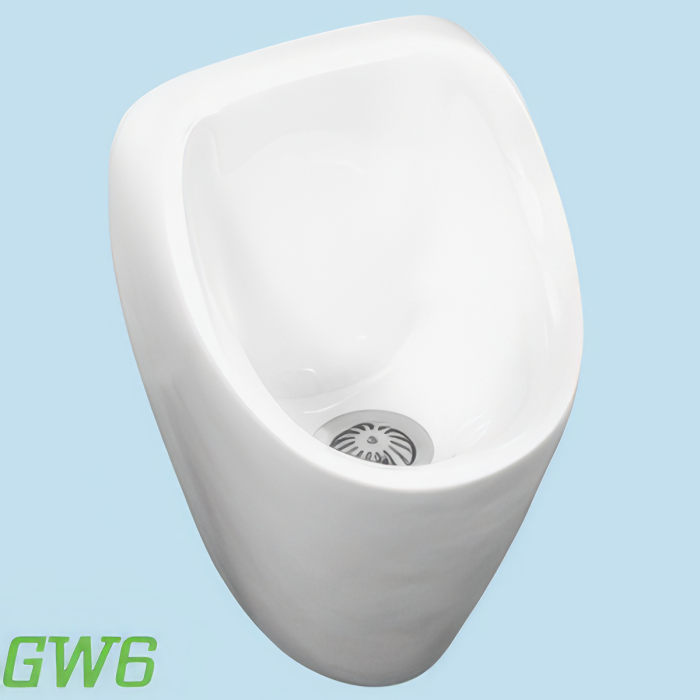

    GW6 Karoo Waterless Urinal Bowl

    The GW6 Karoo waterless urinal bowl uses the same GW6 valve core as the popular GW6 cartridge.The urinal is manufactured in ceramic and is suitable for both concealed and exposed pipework. The compact design, projecting only 260mm from the wall, avoids splashback issues by having a deeper than normal bowl,

    Key Benefits:

    • unique dual valve technology for added protection against odours
    • small, replaceable GW6 valve core typically lasts for 6 months, often as long as a year
    • no sealant required
    • no special tools required for maintenance
    • high drainage rate
    • manufactured in ceramic
    • slim projection space saving design
    • waste pipe connection can be horizontal (e.g. through panel) or vertical (visible for exposed pipework)

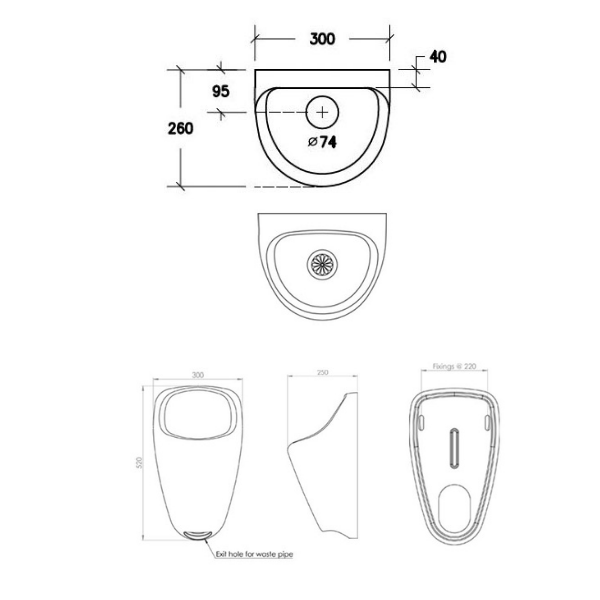

    Bowl Dimensions:  Height = 522mm     Width = 300mm     Projection from wall = 260mm
    - 1 x GW6 Karoo waterless urinal
    - 1 x waterless GW6 housing and valve

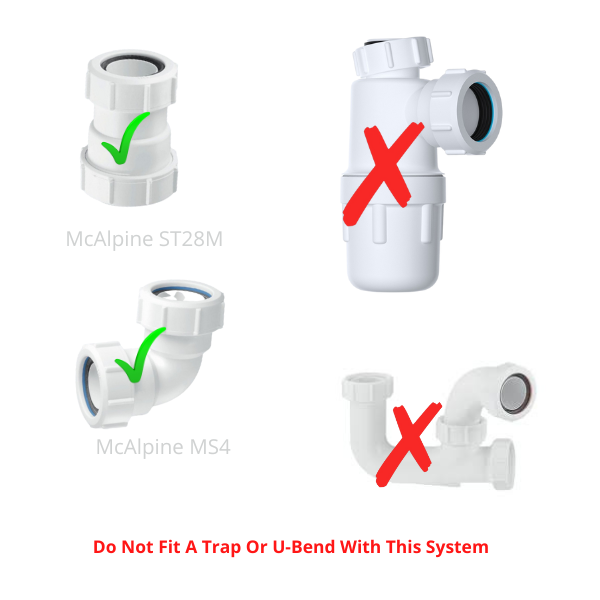

    - 1 x multifit straight connector (ST28M)
    - 2 x steel wall hangers
    About GW6 Karoo
    Product Diagram
    Fitting Guide
    Cleaning & Maintenance
    Sluicing and Cleaning
    Cartridge Change
    Instead of a fluid barrier, the GW6 cartridge uses a silicone double-skirt valve which is tolerant of both water and common cleaning chemicals.

     Click here for more about the GW6.  See replacement valves for GW6 products

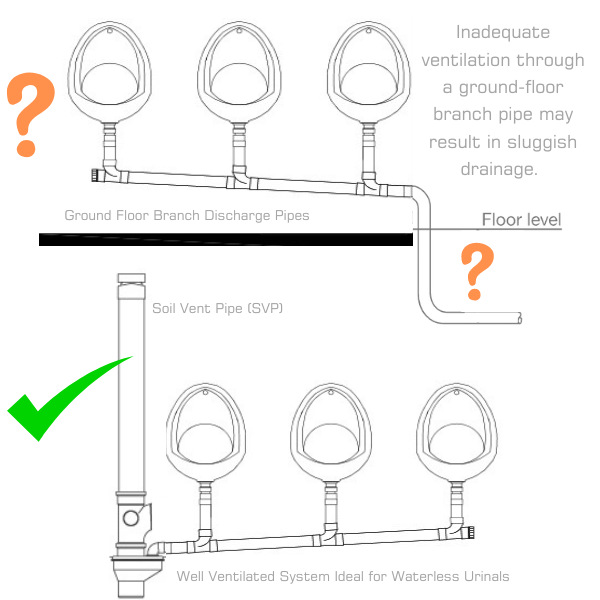

    How to avoid blockages in waste pipes
    Whilst the waste pipes of waterless urinals block less frequently than for most flushed urinals, uric acid salts can still form a sludge which eventually could cause a blockage. Sludge can be a particular problem if the waste pipes are shared with sinks or are poorly configured.  Gentworks recommends periodic sluicing with Bactericidal Cleaner to break down this sludge and carry it away into the main drain. The GW6 valve can be sluiced regularly; once every 2 to 4 weeks is recommended.  The solution used should be approximately 1 part Bactericidal Cleaner to 9 parts warm water from the washroom hot tap.
  • More Product Info

    All Gentworks GW6 Karoo urinals are usually in stock and delivered in 2 to 3 working days but please contact us if you need them faster. The standard delivery charge for UK mainland is £10 per consignment. For locations outside of the UK mainland, including UK islands and Ireland, delivery costs will vary depending upon the size and weight of the consignment. Delivery may also take longer. Please call 0345 202 4535 for a quote and further information.

    The delivery times stated for this product are representative of what we achieve in 95% of cases for this specific product. If we have reason to believe that one or more of the items in your order will not be delivered within the stated time, we will contact you as soon as possible with a new delivery date. Please note that we are unable to specify the time of day your order will be delivered and all goods must be signed for. At time of delivery, please check goods for damage in transit before signing for them in order to avoid disputes over when and where any damage was caused. All goods are checked thoroughly before leaving the warehouse.
