Low Pressure Urinal Flush Controller Solenoid

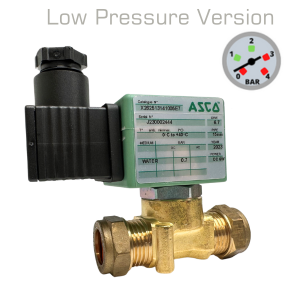

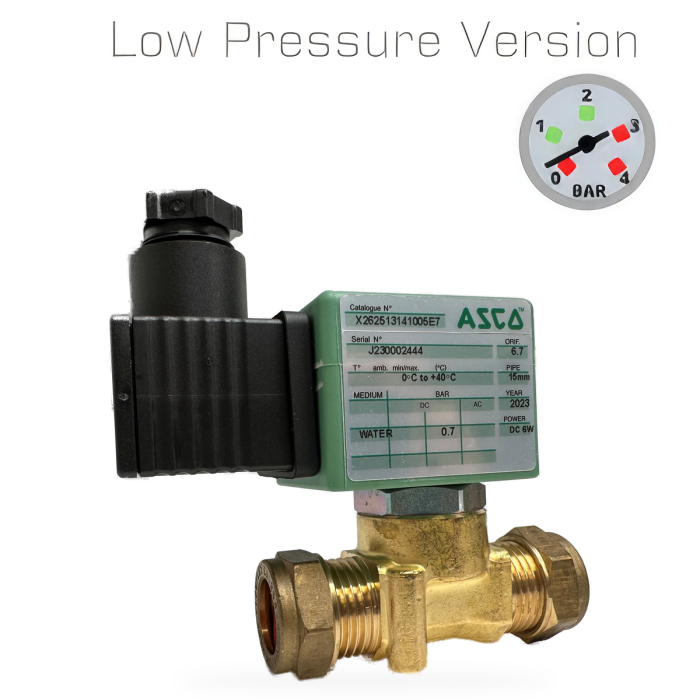

Low pressure ASCO Solenoid valve for fitting to water supply (15mm compression fit).

Designed for very low pressure water systems, the 6.7mm orifice valve is ideal for urinal cisterns with weak water supply, especially when the (header) tank is situated below 2.5 metres. The larger solenoid orifice (6.7mm) significantly increases water flow though the valve, ensuring effective cistern filling.

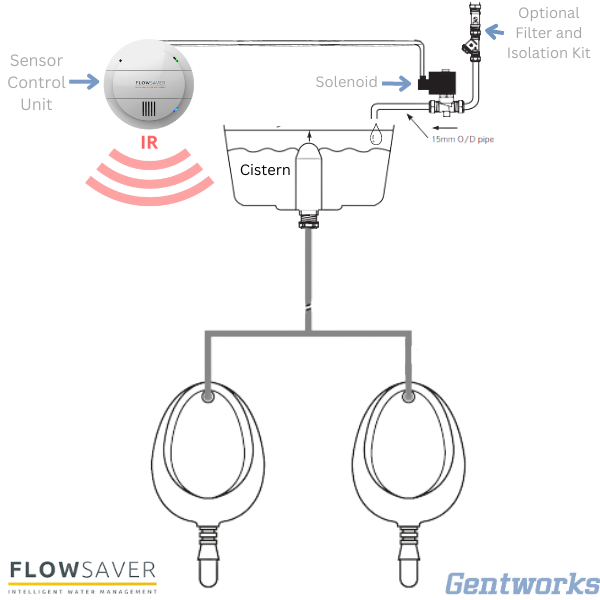

Upgrade your choice by selecting our popular Flow Saver, paired with the low-pressure valve, as a substitute for the standard 2mm orifice valve. Please pick this option above.

6V DC Latching valve with brass body
6.7mm Orifice with compression fittings for 15mm pipe

TECHNICAL DATA
Voltage: 6V DC
Power: 6W
Min Working Pressure: 0.3-0.8 BAR
Connection 15mm Compression fitting
Orifice Size: 6.7mm (for very low pressure systems)
Operation type: Latching
Electrical connection: Supplied spade connector kit
