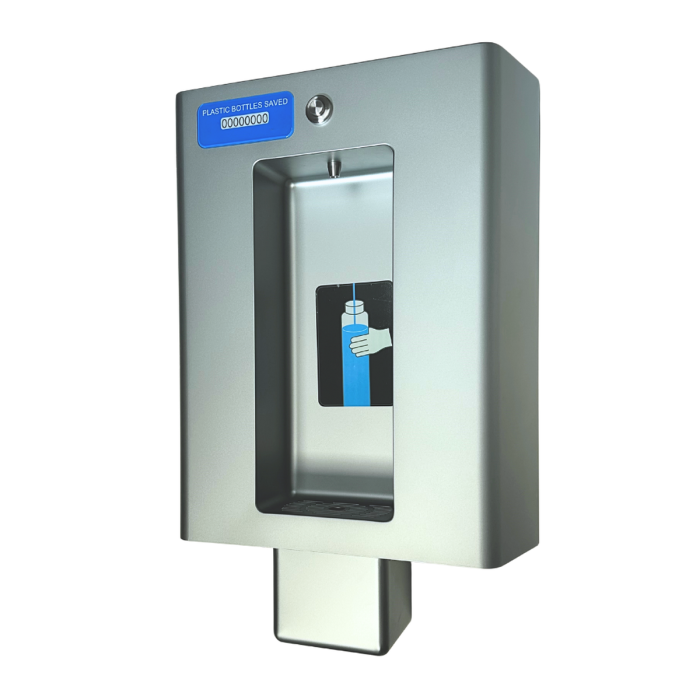

Wall Mounted Bottle Filling Station
This innovative bottle filling station offers impressive features for its price point, including a recessed filler and easy push-button operation. An integrated bottle savings counter tracks each 500ml dispensed as one plastic bottle saved, supporting sustainability and promoting regular hydration. Constructed from 1.5mm thick powder-coated stainless steel, the unit is built to last and mounts on a back plate for easy removal and maintenance.
Features:
- bottle filling drinking fountain
- plastic bottle savings counter
- manufactured from 1.5mm thick stainless steel with a matt finish
- hygienic vandal resistant design
- non-chilled, no electrical connection necessary
- wall mounted
- pipework cover included
- NSF REG4 certification pending
- suitable for use with 0.5, 0.75 and 1 litre bottles
- suitable for indoor and covered outdoor* use
- 1/4" tube mains water connection
- 3/8" tube waste connection
- gross Weight 9.3kg
Pack Includes:
- wall mounted bottle filling station
- pipework cover
- 2 x CR123 batteries (for LCD bottle counter)
- 2.5mm Allan key
- mounting screws & plugs for solid walls
- waste fitting: JG 3/4" Female BSP x 3/8" Push fit CI321216FS
To maintain a compact design, this unit uses different water and waste connections from our other models. It requires 1/4" LLDPE tubing for the mains supply, which should be installed using a mains water installation kit. A built-in "water block" helps prevent significant flooding by limiting flow volume per cycle. The waste outlet uses 3/8" LLDPE tubing connected via a drain clamp. Optional mains water and waste connection kits are available. Water and drain connections can exit through the wall behind the pipe cover or be surface-mounted and concealed with trunking (trunking not supplied).
*For covered outdoor installations, ensure all pipework is properly lagged to prevent freezing.
Click on the Product Data Sheets tab for downloadable instructions and data sheets.
