Campus Drinking Fountain with Bottle Filling Station

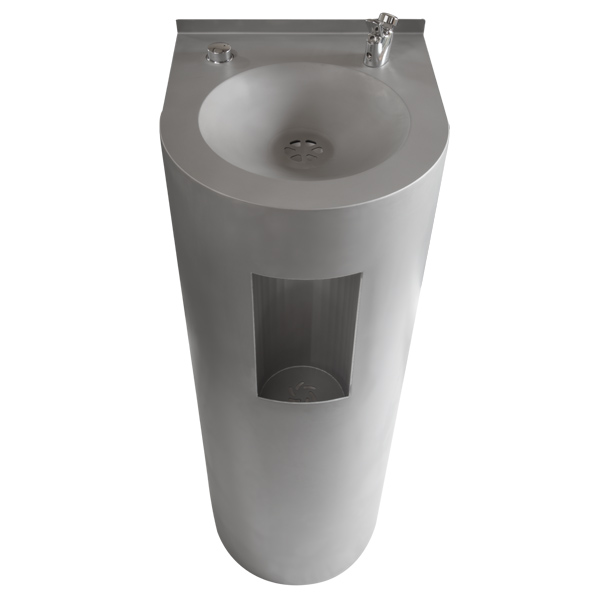

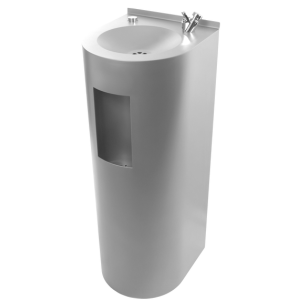

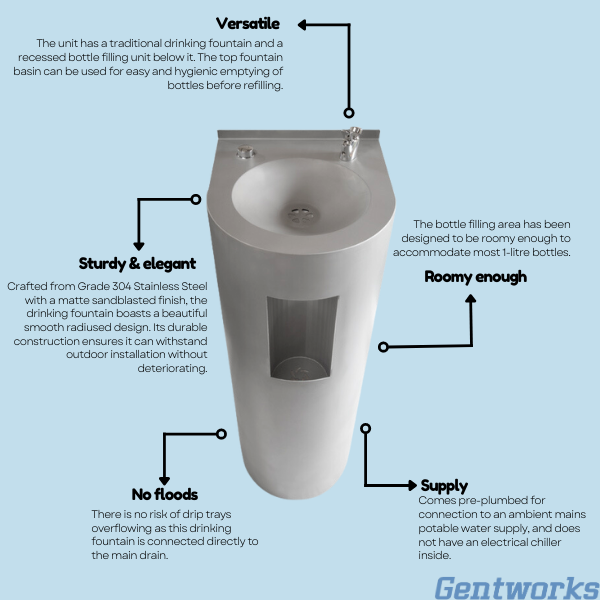

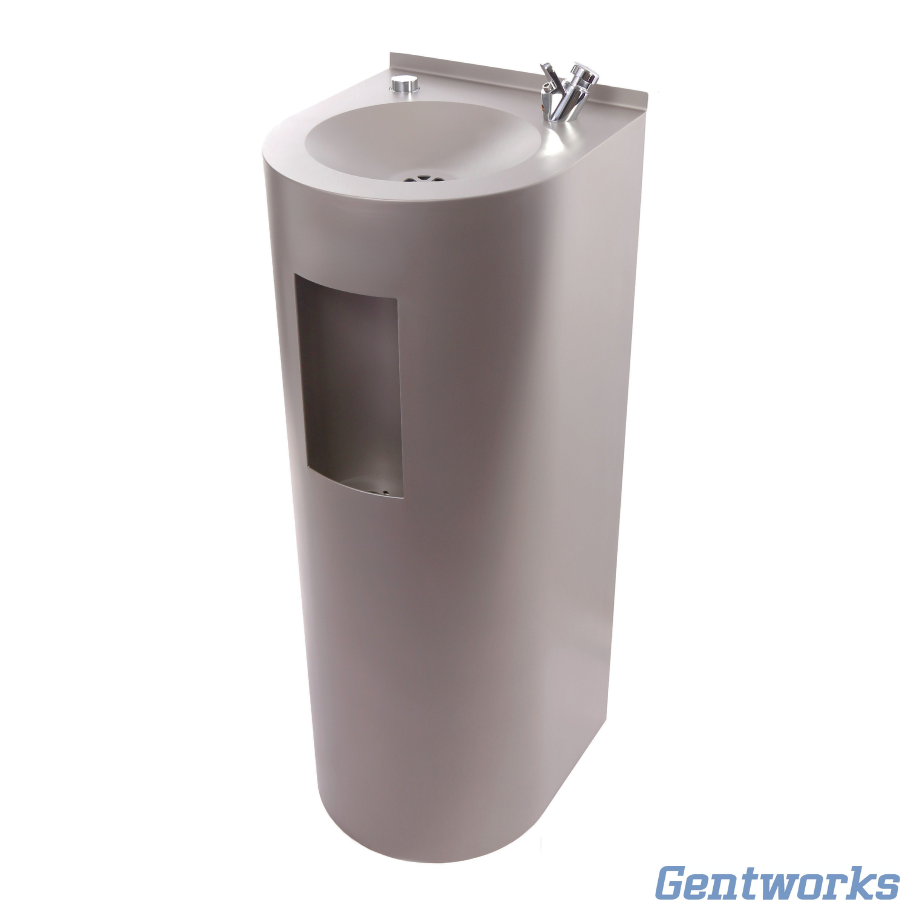

This dual-purpose, floor-standing drinking fountain and bottle filling station is made from 1.5mm thick Grade 304 stainless steel. It dispenses drinking water through a traditional bubbler valve and a convenient recessed bottle filling station suitable for 0.5, 0.75 and 1.0 litre bottles. The hygienic, robust unit is suitable for indoor use and, when proper precautions are observed, outdoor use. The shielded, self-closing bubbler valve is positioned for ease of use, while the bottle filler is operated by a simple push button mounted on top of the unit. Its smooth, radiused design eliminates corners. An integral full-height shroud conceals the water supply and waste pipework. The unit is supplied pre-plumbed with a single flexible water inlet hose and fitted with dual water traps and waste pipes that terminate in one connection.
- multi purpose drinking fountain
- crafted from 1.5mm thick Stainless Steel with a matt sandblasted finish
- hygienic vandal resistant design
- non-chilled, no electrical connection necessary
- beautiful smooth radiused design
- concealed pipework
- WRAS approved dispenser valves
- suitable for use with 0.5, 0.75 and 1 litre bottles
- suitable for indoor and outdoor* use
Optional but recommended is our mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. The water connection kit protects the drinking fountain by preventing the maximum pressure rating being exceeded. A double check valve prevents backward flow of liquid.
Click on the Product Data Sheets tab for downloadable instructions and data sheets.
No electrical connection
No electrical connection is necessary for this drinking fountain as it is directly connected to the mains water supply. Consequently, it reliably dispenses water at temperatures ranging from approximately 10°C to 20°C, accommodating seasonal variations between winter and summer.
Waste Outlets
The drinking fountain and bottle filling station (recessed) are both fitted with a with a 38 mm (11/2 in) BSP flush grated waste fitting, water trap and waste outlet pipe, pre-plumbed into a T piece with a single 40 mm outlet pipe. A multifit 40 mm x 11/2 inch straight waste pipe connector is also supplied.
Bubbler Valve

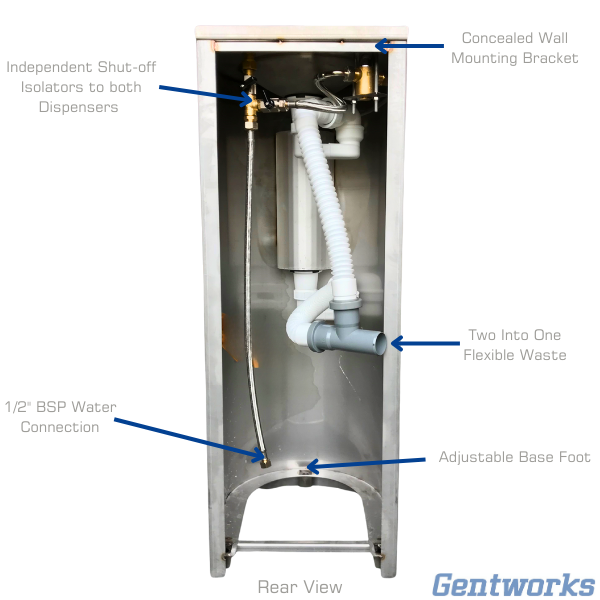

The drinking fountain is supplied with a chrome plated shielded bubbler valve with self closing push button valve. The bubbler valve incorporates a flow adjuster and strainer and is supplied fitted and pre-plumbed with in-line service/isolating valve to a brass T piece with a single ½ inch BSP male inlet connection.
Bottle Filling Valve and Outlet

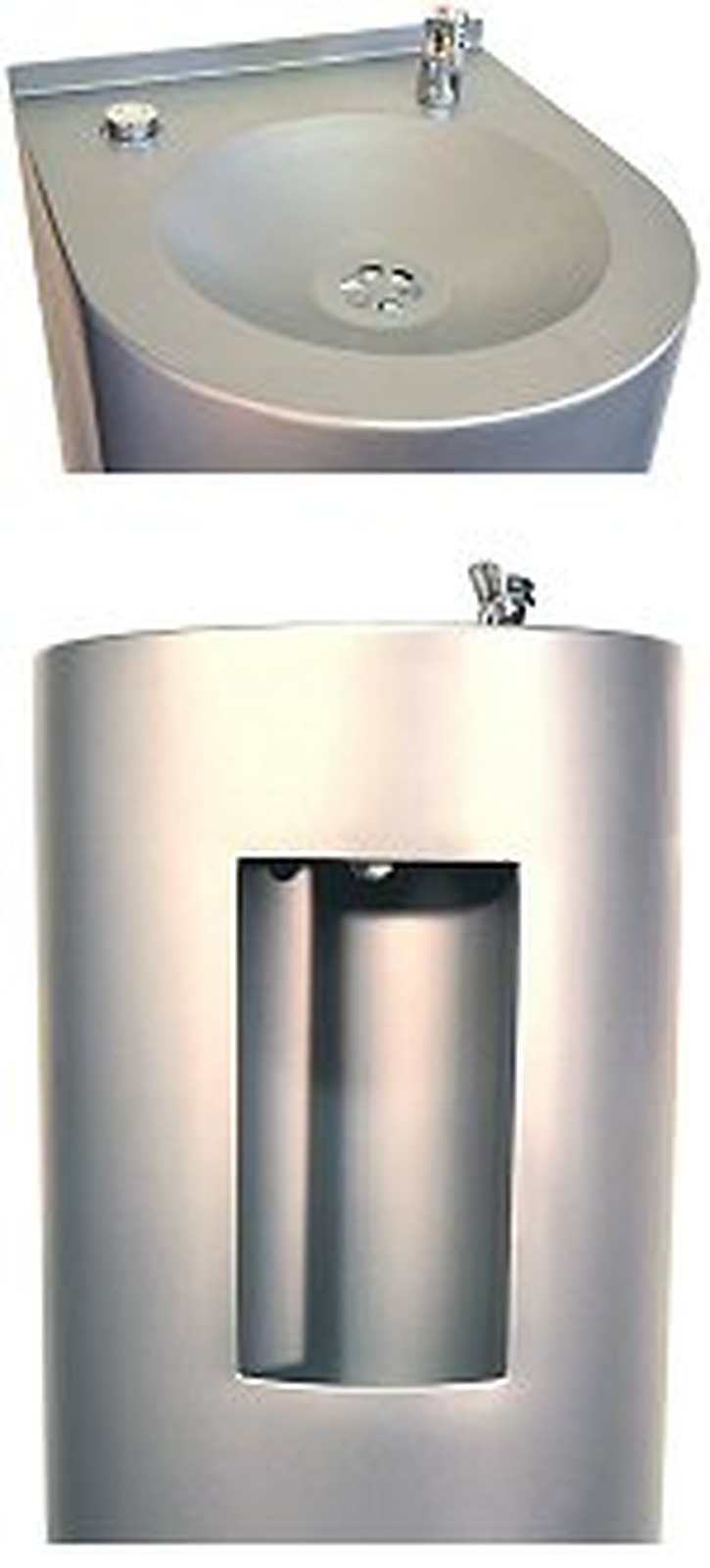

The bottle filling station is recessed into the front of the shroud and is sized to accept all common 0.5, 0.75 and 1.0 litre bottles. Fitted into the top of the recess is a bottle filling outlet, which is connected to the concealed push button flow water control valve. The bottle filling valve is operated by the chrome plated brass push button mounted into the top of the unit. The bottle filling outlet and valve is supplied factory fitted and pre-plumbed with in-line service/isolating valve to the brass T piece which is also connected to the bubbler valve (see above). A stainless steel braided flexible hose is supplied to connect the brass T piece to a 15 mm diameter water supply pipe.
Access for Maintenance

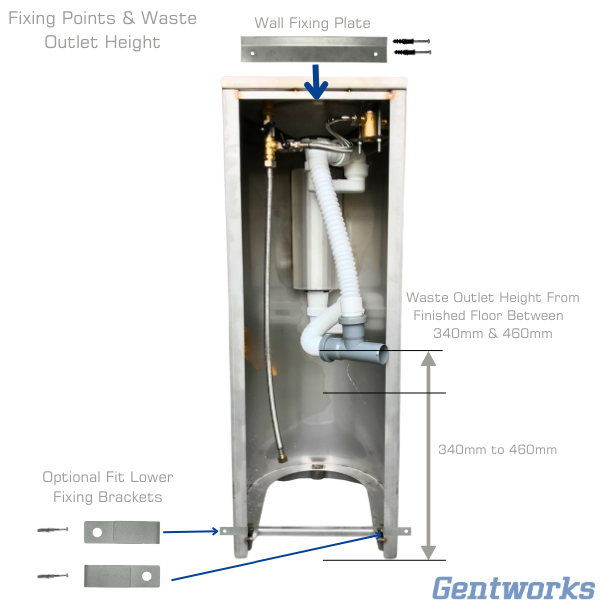

The drinking fountain's flexible water supply hose and extendable waste connection make maintenance and servicing straightforward. Once the unit is lifted from the top wall bracket, it can be effortlessly pulled forward thanks to the flexibility of these components. For added security in areas susceptible to vandalism, the fitting pack includes optional lower wall fixing brackets that can be easily installed to deter unauthorised tampering.
Outdoor Installations
When installed outdoors it is necessary to isolate the water supply, drain completely, prior to temperatures falling to 0°C. If water freezes in the valves irreparable damage will be done to internal parts which will require replacing.

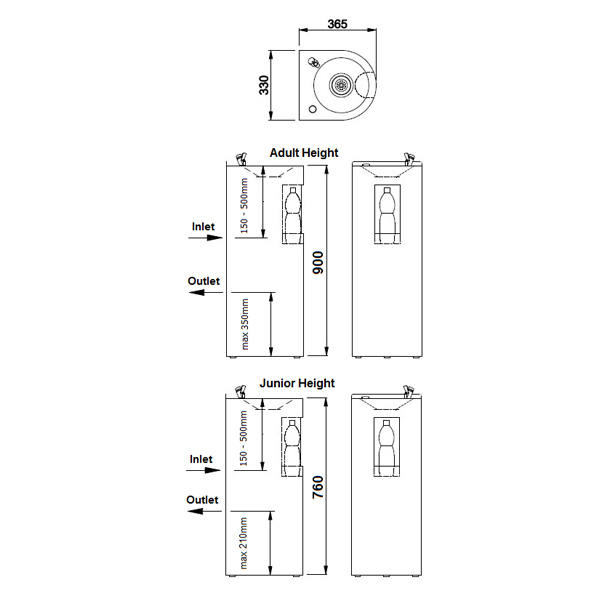

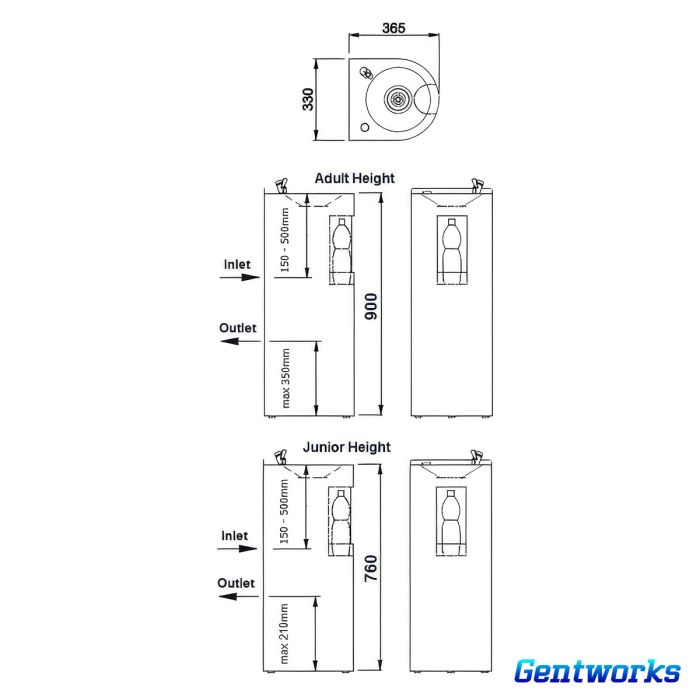

Dimensions:
- Width: 330mm
- Depth: 365mm (projection from wall)
- Height: 900mm (excluding rear upturn and excluding bubbler)
-
-
-
