GW6 Tabernas Waterless Urinal Trough
Price (Inc VAT)

£558.00
Our Price (Ex VAT)

£465.00
Ref GW6TABERNAS12-L
Length
Waste Outlet Location
Waste cover
Quantity

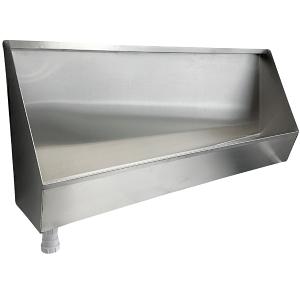

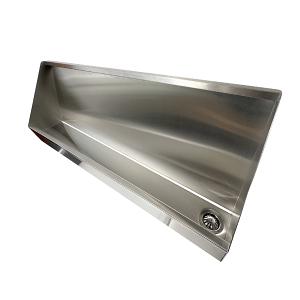

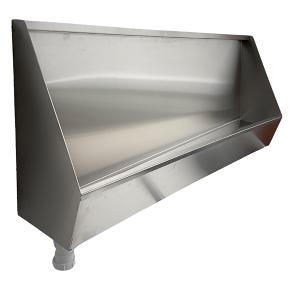

New for 2025 – GW6 Tabernas Stainless Steel Waterless Urinal Trough

Ideal for commercial and public washrooms, this waterless trough increases user capacity while eliminating water usage.

Fitted with the GW6 dual-valve waterless waste, it delivers reliable odour control and low-maintenance operation, with a 4-6 months replaceable core. Waste fittings are included for both vertical and horizontal pipe installations. Add the optional waste outlet cover for enhanced vandal resistance.

Key Benefits / Features:

  • Unique dual valve technology for added protection against odours
  • Small, replaceable GW6 waterless valve core
  • No special tools required for maintenance
  • 100% waterless design with no flushing sparge and a steep fall to waste for rapid drainage.
  • Supplied with 40mm waste connections. For best practice in new installations, connect to 50mm waste pipes.

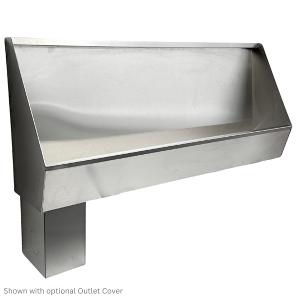

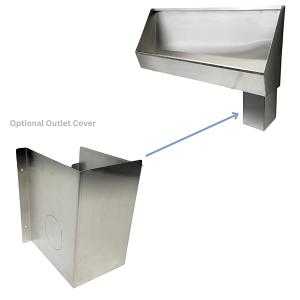

  • Optional waste cover with side knockouts and open bottom for versatile outlet configurations.
  • Waste pipe connection can be horizontal (e.g. through panel) or vertical
The GW6 valve core cartridge uses a silicone double-skirt valve which is tolerant of both water and common cleaning chemicals. Click here for more about the GW6.


Cleaning
The GW6 waterless urinal system is tolerant of standard cleaning chemicals but care should be taken with stainless steel products. Only mild products should be used. For best results, we recommend Bactericidal Cleaner for stainless steel urinals. The surface of the urinal needs to be wiped down regularly to maintain cleanliness.

Includes:
- GW6 Tabernas waterless urinal trough

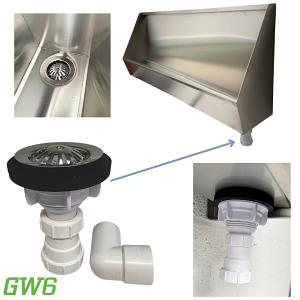

- GW6 housing with valve, backnut and 2x back washers
- ST28M Compression Waste Fitting and WS27 Solvent Weld Waste Bend

Sluicing and cleaning a GW6 waterless urinal


Changing a valve core cartridge in a GW6 urinal
