Drinking Fountain - Wall Mounted Stainless Steel with Bubbler Valve Tap

Price (Inc VAT)

£189.60

Our Price (Ex VAT)

£158.00

Delivery Time 1-3 working days
Ref GW-361-WRAS-B
Dispenser type
Optional water connection kit
Quantity

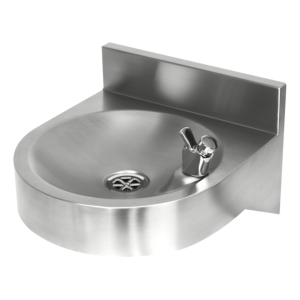

This durable wall-mounted drinking fountain is constructed from 1.5mm thick satin-polished stainless steel. It can be installed at either adult or junior height for added versatility. To ensure safety, the unit boasts a smooth rounded design, eliminating sharp corners that could pose a risk to users.

• Smooth rounded design
• 1.5mm thick grade 304 satin stainless steel
• Raised landing area around bubbler tap
WRAS approved bubbler (tap) supplied as standard
• 32mm waste outlet supplied
• Integral splashback
• Side positioned bubbler for optimum flow trajectory
• Suitable for indoor or outdoor installation
• Ideal for schools and public amenities

This model comes with appropriate wall mounting brackets and is manufactured in one piece from grade 304 stainless steel.

For ease of use, the bubbler valve is situated to one side, on a raised landing area and features a shielded outlet nozzle. The integrated splashback provides for ease of cleaning.

This stainless steel drinking fountain is suitable for outside installation but will need to be isolated and drained down during periods of freezing weather to prevent damage to the valve and pipework.

Supplied with wall bracket, 32mm grated waste fitting and a chrome plated brass shielded bubbler complete with water inlet fitting to suit 15mm diameter pipework.

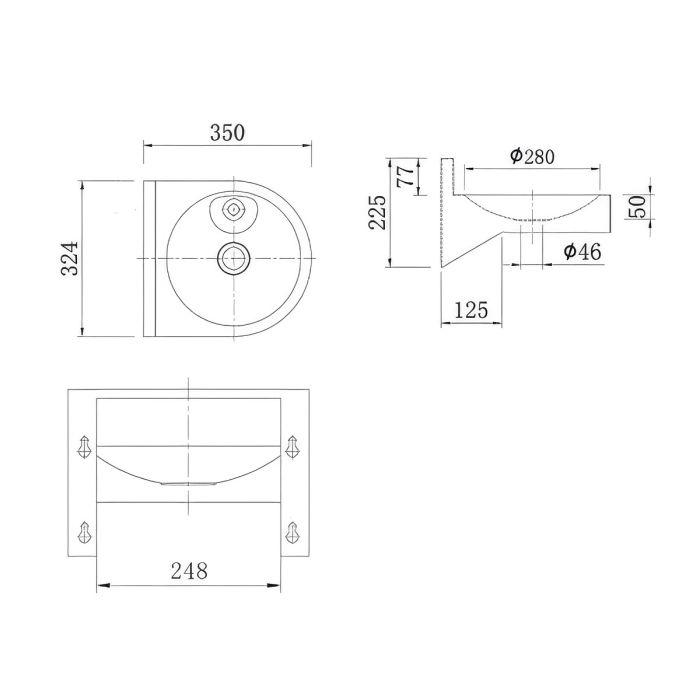

Depth: 350mm (projection from wall)
Height: 225mm (including 77mm high rear upturn but excluding bubbler)
Recommended mounting heights: Top of front Apron to finished floor Junior 762mm, Adult 915mm

Drinking fountains with bubblers provide a jet of water to the user under normal mains pressure which does not need a cup or drinking vessel.

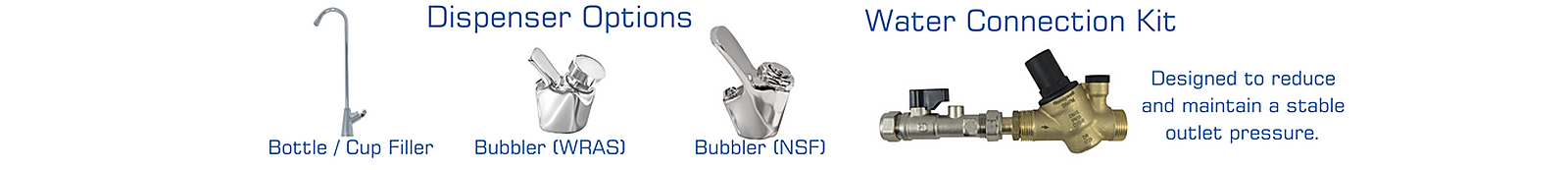

WRAS approved bubbler tap, supplied as standard with the drinking fountain a chrome press button drinking water bubbler valve (tap) approved product in accordance with UK water regulations.

NSF approved bubbler tap, heavy duty shielded chrome press button drinking water bubbler valve (tap) with easily replaceable self-contained Pro-Flo™ cartridge. Product is certified to NSF/ANSI 372. If you require this option please select the dispenser type above.

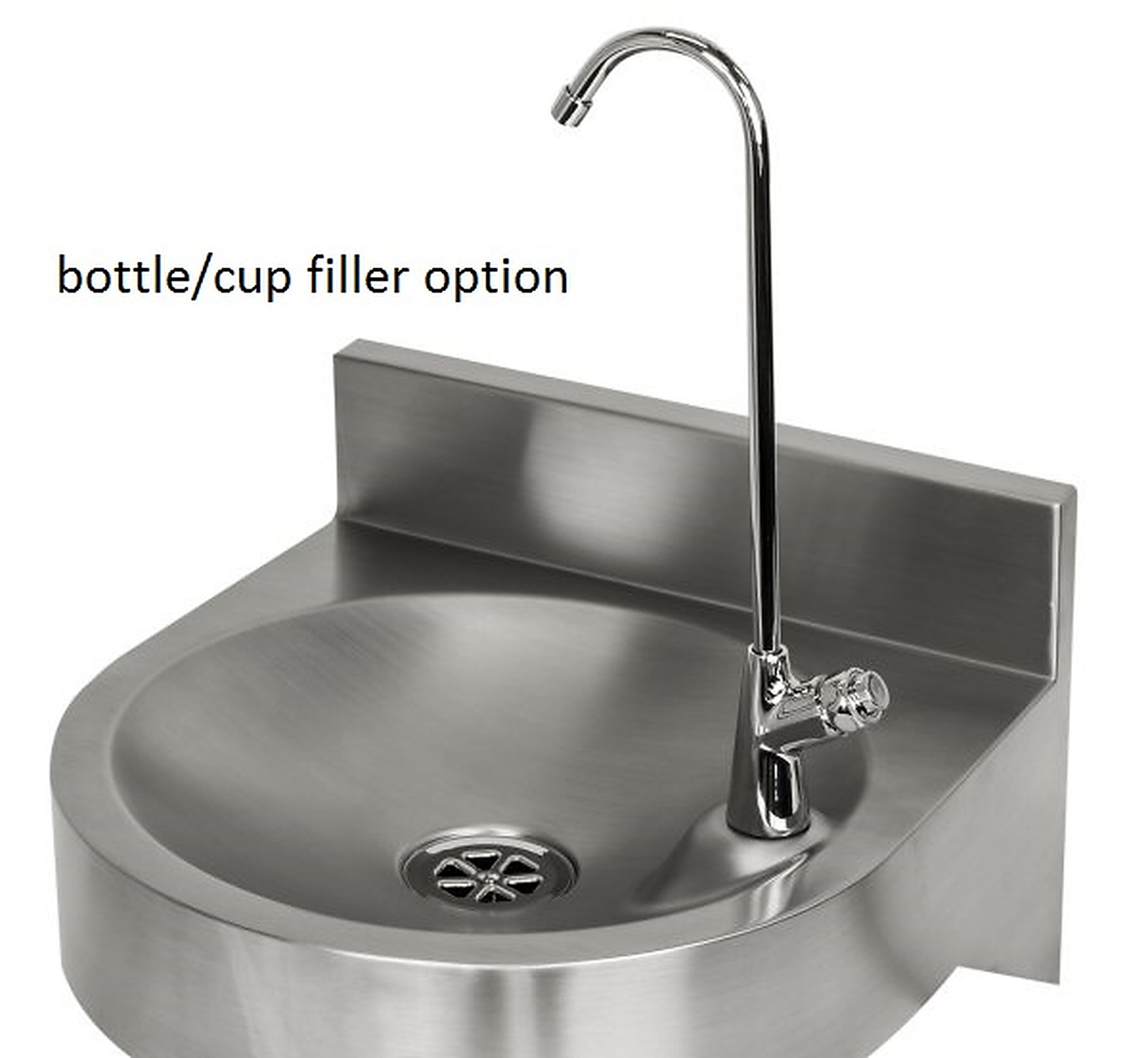

Bottle / Cup filler: self-closing push button valve fitted with a 255mm high, chrome plated, fixed brass swan-neck spout. Water only flows whilst the button is depressed. For safety reasons, glass/bottle fillers are not designed to withstand heavy impact and should only be installed in areas with supervision or low risk of vandalism. If you require this option please select the dispenser type above.

Optional but recommended is our Mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. Protects the drinking fountain by preventing the maximum pressure rating being exceeded. Double check valve prevents backward flow of liquid.


GW-361 Product Data Sheet

 GW-361 Installation Instructions


UPC 700461826736

At Gentworks, we don't supply our Stainless steel drinking fountains aimed at schools with two dispenser types due to reports of accidents. Users who lean over to use the bubbler may hit their heads on the swan-neck bottle filler nearby. Although some incidents may have been caused by rowdy behaviour, we prioritise customer safety and prefer caution.

The swan neck bottle filling spout is fixed, but it can be unwound if forced. We have some customers who use Loctite Retainer (NSF P1 listed) to bond it securely in place.

The fountains come with a waste outlet (plug hole), but you will need to separately acquire a 32mm shallow trap. You can easily find these traps at places like Screwfix or Toolstation, and your installer may also have them.

*
*
*
*
