ArcSquare Concealed Trap Urinal

Price (Inc VAT)

£151.20

Our Price (Ex VAT)

£126.00

Delivery Time 2 to 4 working days (Pallet Delivery)
Ref AS-BO-CT
Waste Trap

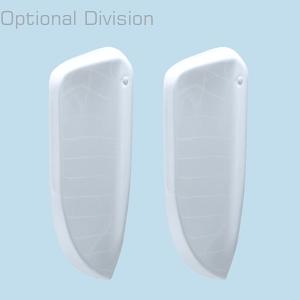

Division(s) (ceramic privacy screen)
Quantity
OUT OF STOCK

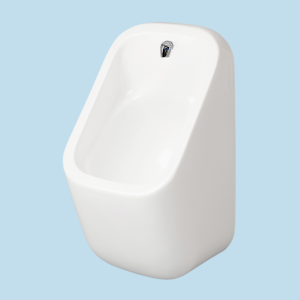

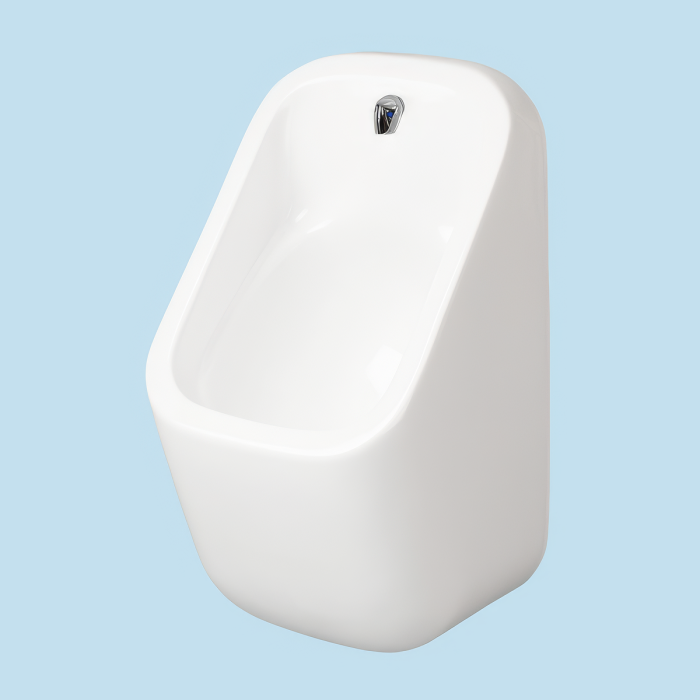

ArcSquare Concealed Trap Urinal – bowl with back-inlet flushing spreader and wall bracket only. No cistern included.

More stock due in around 10th February

A modern, square-shaped urinal bowl designed for fully concealed installations. Ideal for most commercial washrooms, including schools, offices, leisure facilities and hospitality venues. With waste trap and flushing pipes hidden, it delivers a sleek, stylish look while also making cleaning quicker and easier.

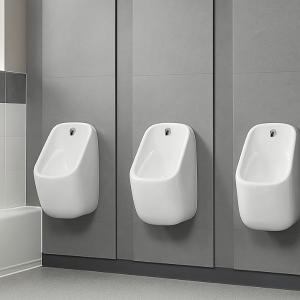

This urinal can be supplied with appropriate concealed cisterns, spreaders, and sparge pipes for one, two, or three-bowl installations or for connection to a mains direct-flush system.

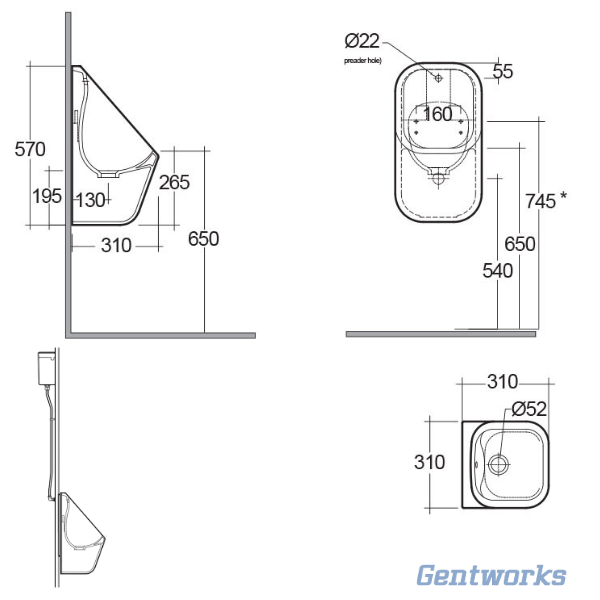

Bowl Dimensions:  Height = 570mm  Width = 310mm  Projection from wall = 310mm

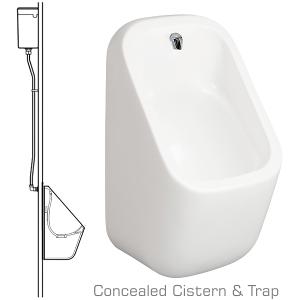

Pack Type: Designed for concealed installations with the cistern mounted behind panels or within a stud wall, and the trap fully enclosed inside the urinal. The installation should include access panels within the service duct behind the urinals to allow easy maintenance.

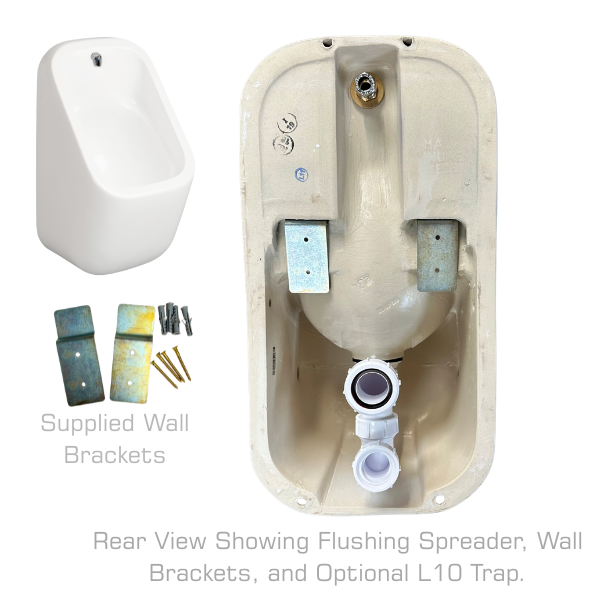

Pack includes:
- 1 x Ceramic Conceald Trap Urinal
- 1 x Rear Entry Flushing Spreader
- 1 x Wall Hanger Bracket
- 1 x Domed Waste Outlet - White

Optional Traps:
- McAlpine L10 Trap with Cleaning Eye

Click on the Product Data Sheets tab for downloadable instructions and data sheets.

Standard Pallet Service: These ceramic urinals are delivered on a standard pallet service between 8am and 5pm to UK mainland only. Please note that a recipient’s signature is required, therefore someone needs to be on site to receive and check the goods. Our deliveries are made by driver only vehicles, as such the pallet will be delivered to curb side only and they will not be able to carry the goods into your property. Any failed deliveries due to the customer not being able to take delivery may be charged to the customer at our standard rate.

Contact at Site: Please ensure you provide the correct mobile number for delivery so the pallet carrier can make contact, if necessary.

Delivery Access: Delivery vehicle can be up to 28 tons therefore it is important that the site is accessible by such vehicles.

Deliveries to some construction sites or an address not listed on the Royal Mail PAF File may not be possible.

UK mainland only - excludes Highlands and some Scottish postcodes.

*
*
*
*
