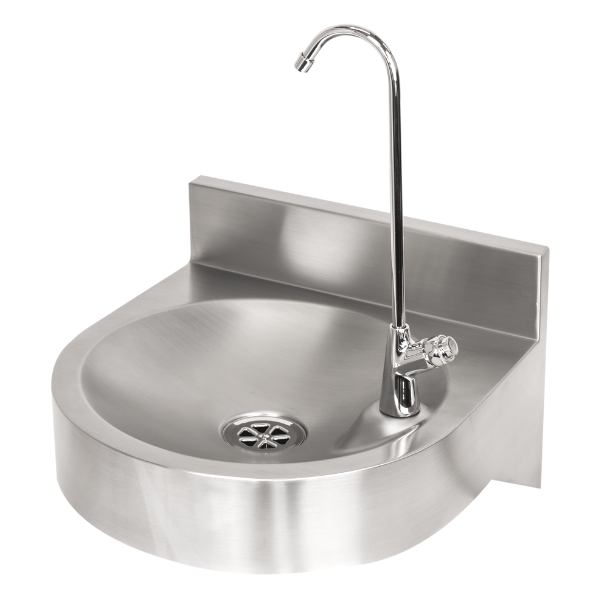

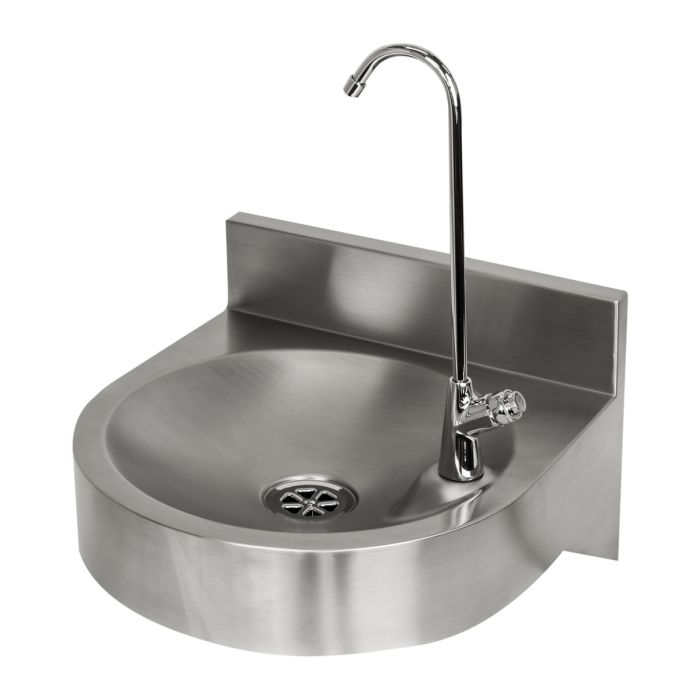

Drinking Fountain Stainless Steel with Bottle Filler - Wall Mounted
|
This durable wall-mounted drinking fountain is constructed from 1.5mm thick satin-polished stainless steel. It can be installed at either adult or junior height for added versatility. To ensure safety, the unit boasts a smooth rounded design, eliminating sharp corners that could pose a risk to users. .png) • Smooth rounded design This model comes with appropriate wall mounting brackets and is manufactured in one piece from grade 304 stainless steel. For ease of use, the dispenser is situated to one side, on a raised landing area. The integrated splashback provides for ease of cleaning. This stainless steel drinking fountain is suitable for outside installation but will need to be isolated and drained down during periods of freezing weather to prevent damage to the valve and pipework. Supplied with wall bracket, 32mm grated waste fitting and bottle filling swan-neck spout complete with water inlet fitting to suit 15mm diameter pipework.

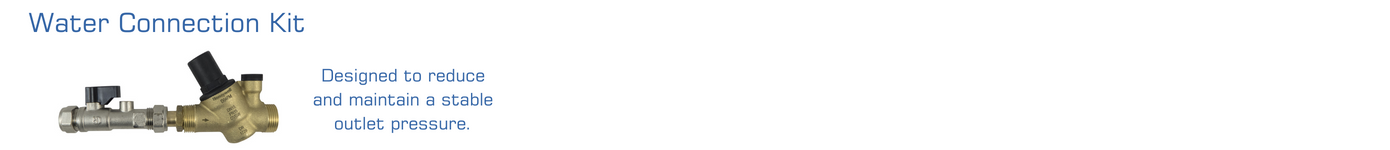

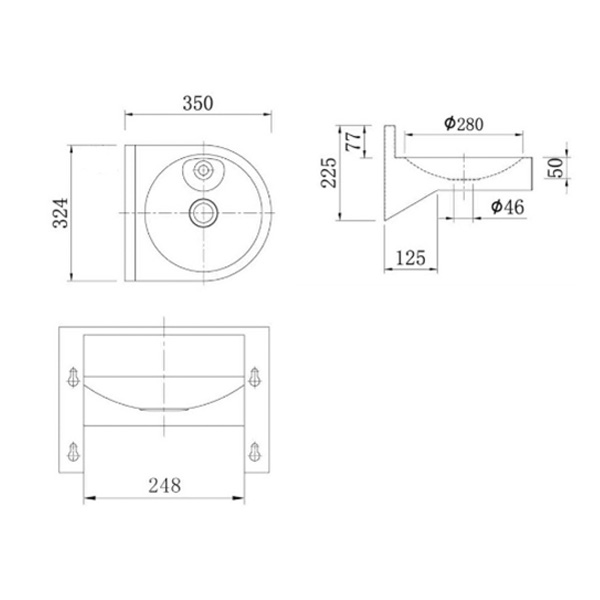

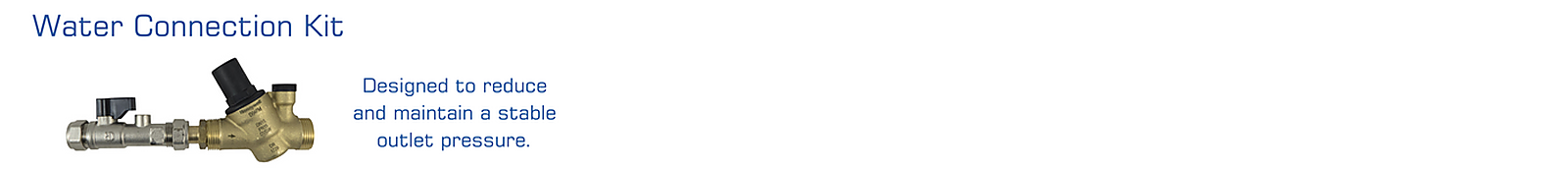

Depth: 350mm (projection from wall) Optional but recommended is our Mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. Protects the drinking fountain by preventing the maximum pressure rating being exceeded. Double check valve prevents backward flow of liquid. Optimal pressure is 1.5-2 bar; do not exceed 3 bar.  GW-361 Product Data Sheet
GW-361 Installation Instructions |
At Gentworks, we don't supply our Stainless steel drinking fountains aimed at schools with two dispenser types due to reports of accidents. Users who lean over to use the bubbler may hit their heads on the swan-neck bottle filler nearby. Although some incidents may have been caused by rowdy behaviour, we prioritise customer safety and prefer caution.

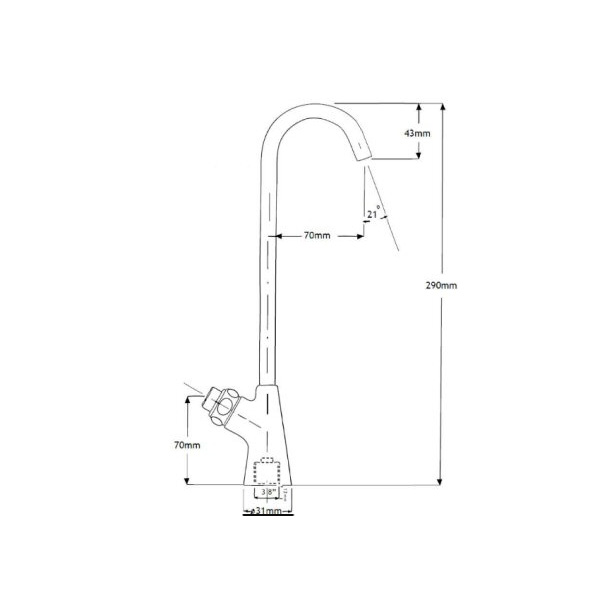

The swan neck bottle filling spout is fixed, but it can be unwound if forced. We have some customers who use Loctite Retainer (NSF P1 listed) to bond it securely in place.
The fountains come with a waste outlet (plug hole), but you will need to separately acquire a 32mm shallow trap. You can easily find these traps at places like Screwfix or Toolstation, and your installer may also have them.
