Stainless Steel Urinal Auto Cistern

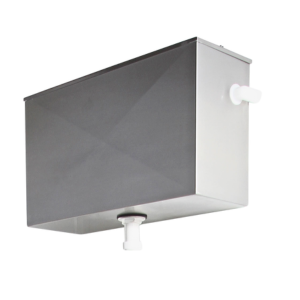

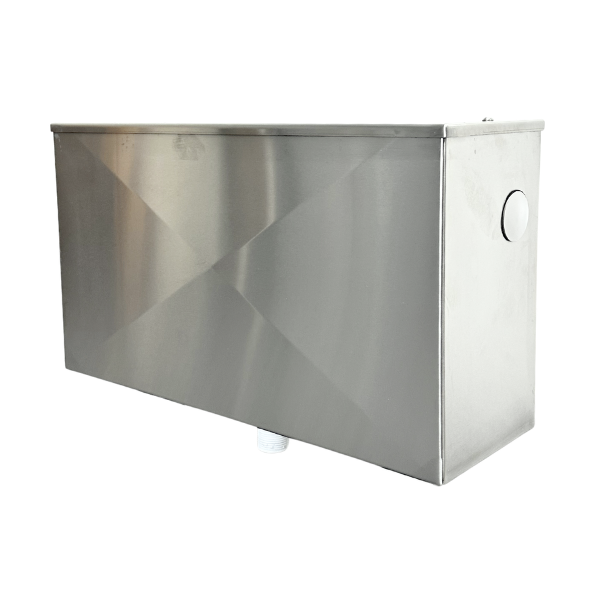

Stainless Steel Automatic Urinal Flushing Cistern.

The 9L version is currently out of stock, with more due in mid to late May.

Our urinals come supplied with white plastic automatic cisterns as standard, which are cost-effective and in our experience unlikely to be damaged due to their high placement. However, for enhanced vandal resistance, we offer a stainless steel cistern. Manufactured from 304-grade stainless steel, this cistern is available in 9-litre or 13-litre capacities and includes an automatic siphon.

Kit includes: cistern, lid, auto siphon, angled connector for side inlet, and petcock.

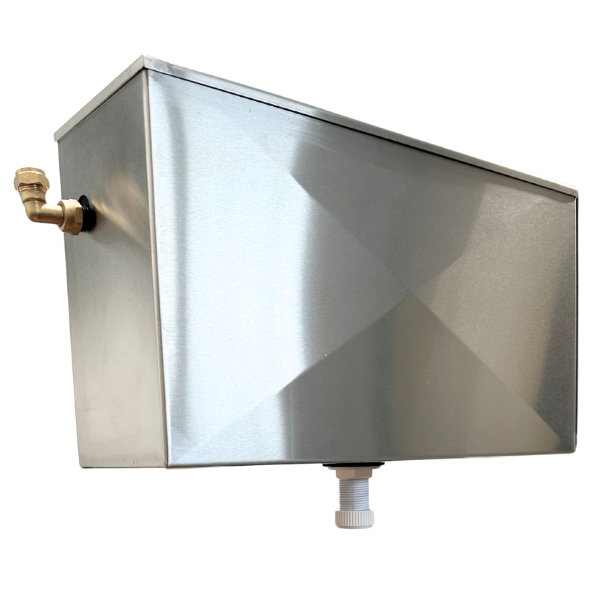

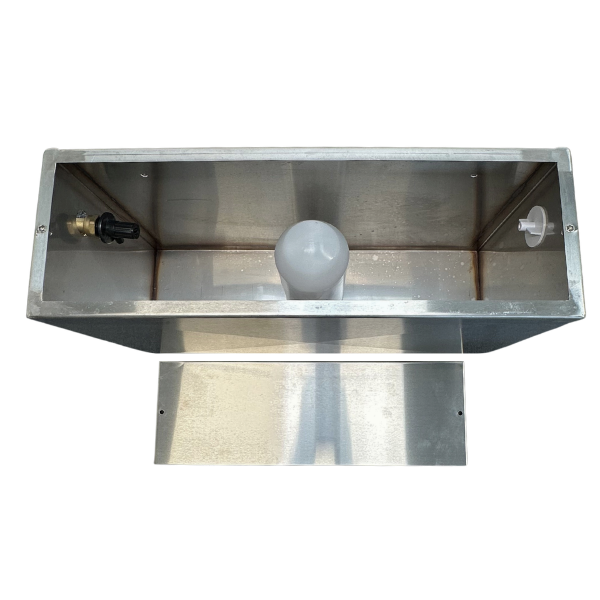

The water inlet can be supplied from either the left or right-hand side, and the removable cistern lid is secured with Allen key bolts. Fixing holes at the rear of the cistern allow for wall mounting.

The outlet connection is 1" BSP and is designed for connection to a 22mm downpipe (not supplied). An optional adaptor fitting is available to connect the 1" BSP thread to 22mm pipework (SCNS).

To comply with Building Regulations, the filling of these cisterns should be controlled by a suitable water management system such as the Flow Saver.
