Drinking Fountain Spares

Gentworks supplies replacement bubblers and swan-neck bottle/cup filler valves for all our stainless steel drinking fountain products. The most common reason for having to replace a valve, or the cartridge within the valve, is that a fountain has been exposed to cold weather before the fountain was drained. Cartridges are available separately should freezing damage the original one supplied with the fountain.

PAYMENT TERMS FOR STATE FUNDED SCHOOLS: Gentworks usually opens credit accounts for state funded schools on normal 30 day terms. Authorised purchase orders can be emailed to orders@gentworks.co.uk. Please note that all advertised prices exclude VAT and there is a £10 + VAT delivery charge per order.

Featured Products



Pro-Flo Cartridge (plastic cap) for Drinking Fountain Bubbler

Pro-Flo Cartridge (plastic cap) for Drinking Fountain Bubbler

DFBV-CARTRIDGE

This plastic Pro-Flo cartridge is no longer in stock. However, we offer a brass alternative with the same fit, but stronger durability. Check out the Superior Pro-Flo Cartridge (Brass Cap) below.

This Pro-Flo cartridge is used within the bubbler valves of many brands of drinking fountain.

 Height: 42mm including spring mechanism but excluding 2.5mm pins projecting from bottom surface

 Diameter: 25mm for bottom surface, 17mm for spring cap

Click here for the longer lasting brass version of this cartridge from the same manufacturer.

£23.00

 (ex VAT)
Superior Pro-Flo Cartridge (Brass Cap) for Drinking Fountain Bubbler

Superior Pro-Flo Cartridge (Brass Cap) for Drinking Fountain Bubbler

PROFLO-BRX1

This Pro-Flo brass longer lasting cartridge is used within the bubbler valves of many brands of drinking fountain. It is a direct but superior replacement for the plastic version of the same cartridge.

 Height: 42mm including spring mechanism but excluding 2.5mm pins projecting from bottom surface

Diameter: 25mm for bottom surface, 17mm for spring cap

£27.00

 (ex VAT)
Replacement Plunger Cartridge for GW-BFBVA Swan-Neck Cup/Bottle filler

Replacement Plunger Cartridge for GW-BFBVA Swan-Neck Cup/Bottle filler

BFBVA-FITTINGS

The simple solution to address dripping or leaking GW-BFBVA Swan-Neck Cup/Bottle Fillers. These components can degrade over time, often attributed to lime-scale buildup, potential frost damage, or the risk of over-pressurisation leading to failure. Additionally, for hygiene considerations, it is advisable to replace them every 12 months.

Cartridge measures 44mm long with thread diameter 15.5mm.

Optimal pressure is 1.5-2 bar; do not exceed 3 bar.

£31.00

 (ex VAT)
Replacement Bottle Filler Cartridge for GW-951 Drinking Fountain

Replacement Bottle Filler Cartridge for GW-951 Drinking Fountain

BF-CARTRIDGE-951

The simple solution for repairing dripping or leaking bottle filling valve, suitable for GW-951 and GW-952 drinking fountains.

As fitted to the following models:

GW-951-(Bottle Filler Dispenser)

GW-952-(Bottle Filler Dispenser)

AP-451 (Bottle Filler Dispenser)

AP-452 (Bottle Filler Dispenser)

£35.00

 (ex VAT)
Replacement Valve and Push Button for Gentworks WRAS Drinking Fountains

Replacement Valve and Push Button for Gentworks WRAS Drinking Fountains

DFBV-VALVE-WRAS

The straightforward remedy for fixing dripping or leaking DFBV-WRAS Drinking Fountain Bubblers and GW-BFBVA-WRAS Swan-Neck Cup/Bottle Fillers. These components can deteriorate with time, primarily due to lime-scale accumulation or potential frost damage.

As fitted to the following models:

GW-361-WARS-B

GW-362-WRAS-B

GW-951 and GW-952

£38.00

 (ex VAT)

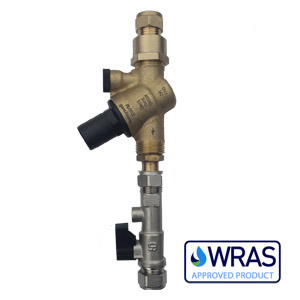

Drinking Fountain Mains Water Connection Kit

Drinking Fountain Mains Water Connection Kit

DF-RAIL-PRV

Mains water installation rail / kit designed for aiding the connection of drinking fountains to a mains water supply pipe.

Protects the drinking fountain by preventing the maximum pressure rating being exceeded.
Double check valve prevents backward flow of liquid.

• Isolation (shut off) / double check valve
• Honeywell adjustable pressure reducing valve
• Inlet - 15mm compression fitting
• Outlet - 3/4" BSP and supplied with 15mm compression fitting
• Max. inlet pressure is 16 bar
• Outlet pressure 1.5-6 bar adjustable
• Length 200mm
• Installation can be vertical or horizontal

  Kit includes isolation valve, double non-return valve (also known as a check valve) and Honeywell adjustable pressure limiting valve.

If supplying a drinking dispenser valve, the optimal pressure is 1.5-2 bar, and it should not exceed 3 bar.

£39.00

 (ex VAT)

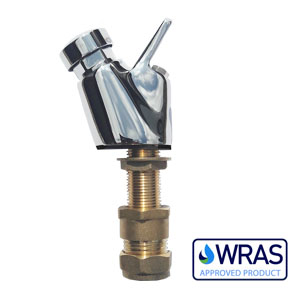

Replacement Drinking Fountain Bubbler for Gentworks Drinking Fountains

Replacement Drinking Fountain Bubbler for Gentworks Drinking Fountains

DFBV-WRAS

WRAS approved bubbler tap as supplied with Gentworks current range drinking fountains.

This bubbler is suitable for the following Gentworks Drinking fountains:

GW-361, GW-362, GW-951, GW-952

Supplied With:
35mm long shank
Brass back nut with washer
Rubber sealing gasket
3/8" BSP to 1/2" BSP connector with a 15mm compression fitting
Optional fit anti-rotation pin


Product features:
Replaceable button and cartridge assembly available
External flow trajectory adjustment
Easy Push
Double stainless steel net filter
WRAS Approved product

Optimal pressure: 1.5-2.0 BAR - Do not exceed 3.0 BAR.

Recommended is our Mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. Protects the drinking fountain by preventing the maximum pressure rating being exceeded. Double check valve prevents backward flow of liquid.

£55.00

 (ex VAT)
Drinking Fountain Bubbler Valve for 3/8 or 1/2 inch

Drinking Fountain Bubbler Valve for 3/8 or 1/2 inch

DFBV3812NP

This shielded bubbler valve is supplied with a 3/8 inch BSP tail fitting and ½ inch BSP tap connectors or compression fit to 15mm copper tube. The brass tail is 50mm long. The bubbler has a replaceable cartridge should this be required. This bubbler does not have an anti-rotation pin.

This bubbler tap will fit most brands of bubbler dispenser type drinking fountains.

£58.00

 (ex VAT)
Swan-Neck Cup/Bottle Filler Tap for Drinking Fountain with 3/8 and 1/2 inch fittings

Swan-Neck Cup/Bottle Filler Tap for Drinking Fountain with 3/8 and 1/2 inch fittings

GW-BFBVA

Push button swan-neck bottle filling tap with 3/8 and 1/2 inch BSP fittings is designed for use with Gentworks & Apinox drinking water fountains.

This unit is also frequently used as a replacement cup/bottle filler for other brands of drinking fountain.

A brass backnut, rubber washer and 15mm compression coupler are included.

Optimal pressure is 1.5-2.0 BAR; do not exceed 3.0 BAR.

Recommended is our Mains water connection kit designed for aiding the connection of drinking fountains to a mains water supply pipe. Protects the drinking fountain by preventing the maximum pressure rating being exceeded. Double check valve prevents backward flow of liquid.

£58.00

 (ex VAT)
Swan-Neck Cup/Bottle Filler with Oval Base

Swan-Neck Cup/Bottle Filler with Oval Base

GW-BFBVA-WRAS

Push button swan-neck bottle filler with fixed spout.

Product features:
Replaceable button and cartridge assembly available
External flow adjustment
Easy Push
Stainless steel net filter

Supplied With:
Brass back nut
Rubber sealing gasket
3/8" BSP to 1/2" BSP connector with a 15mm compression fitting
Optional fit anti-rotation pin

Optimal pressure is 1.5-2 bar; do not exceed 3 bar.

£69.00

 (ex VAT)
Bottle Filler Complete Valve Assembly for GW-951 Drinking Fountain

Bottle Filler Complete Valve Assembly for GW-951 Drinking Fountain

BF-VALVE-951A

Complete valve assembly that operates the bottle filler on the GW-951 drinking fountain.
This might be required if the original one has been frost damaged.

As fitted to the following models:

GW-951-(Bottle Filler Dispenser)

GW-952-(Bottle Filler Dispenser)

AP-451 (Bottle Filler Dispenser)

AP-452 (Bottle Filler Dispenser)

£88.00

 (ex VAT)
