Ceramic Urinals

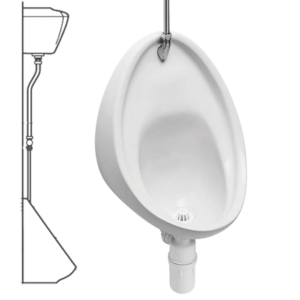

Exposed Cistern Urinal Sets: (where the cistern is on the same side of the wall as the urinals and also referred to as a surface-mounted)

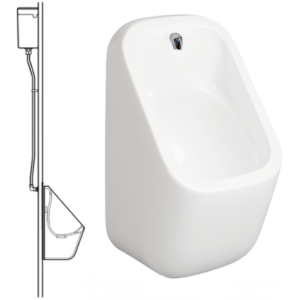

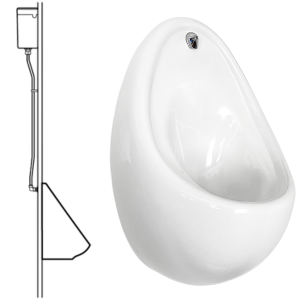

Concealed Cistern Urinal Sets:
(where the cistern is behind partitions or a stud wall)


1 Urinal Set - Coronus 500: Exposed Trap, Flushpipes  & China Cistern

1 Urinal Set - Coronus 500: Exposed Trap, Flushpipes & China Cistern

1GW50EXP

The Coronus is a great value 500mm height wall mounted urinal in vitreous china.

Bowl Dimensions:  Height = 500mm  Width = 383mm  Projection from wall = 303mm

Pack Type: For exposed installation, with the cistern mounted on the same side of the wall above the urinal. Includes everything required from the cistern down to the waste traps.

•     Standard spreader flushing urinal
•     Shallow open bowl design
•     Water guide channels for efficient flushing
•     Large 500mm Height by 383mm Width
•     Similar in design to more expensive brands


Pack includes:
- 1 x Coronus 500 Urinal
- 1 x 4.5 litre China Auto Cistern c/w Hangers, Syphon & Petcock
- 1 x Exposed Stainless Steel Sparge Pipe Set with Pipe Clips (for 1 urinal)
- 1 x Top Entry Flushing Spreader
- 1 x Pair of  Urinal Wall Hangers
- 1 x Domed 38mm Waste Outlets - White

Optional Traps:
- McAlpine C10 White Plastic Bottle Trap
- McAlpine C10AR Chrome Plastic Bottle Trap

 Product Data Sheet Coronus 500mm Exposed Trap Urinal

£195.00

 (ex VAT)
2 Urinal Set - Coronus 500: Exposed Trap, Flushpipes  & China Cistern

2 Urinal Set - Coronus 500: Exposed Trap, Flushpipes & China Cistern

2GW50EXP1

THIS PRODUCT IS USUALLY DELIVERED IN 2-3 WORKING DAYS VIA OUR STANDARD PALLET SERVICE
Please check pallet service delivery restrictions in the "About Delivery" tab before ordering.

The Coronus is a great value 500mm height wall mounted urinal in vitreous china.

Bowl Dimensions:  Height = 500mm  Width = 383mm  Projection from wall = 303mm

Pack Type: For exposed installation, with the cistern mounted on the same side of the wall above the urinal. Includes everything required from the cistern down to the waste traps.

•     Standard spreader flushing urinals
•     Shallow open bowl design
•     Water guide channels for efficient flushing
•     Large 500mm Height by 383mm Width
•     Similar in design to more expensive brands

Pack includes:

- 2 x Coronus 500 Urinals
- 1 x 9 litre China Auto Cistern c/w Hangers, Syphon & Petcock
- 1 x Exposed Stainless Steel Sparge Pipe Set With Pipe Clips (for 2 urinals)
- 2 x Top Entry Flushing Spreaders
- 2 x Pair of  Urinal Wall Hangers
- 2 x Domed 38mm Waste Outlets - White

Optional Traps:
- McAlpine C10 White Plastic Bottle Trap
- McAlpine C10AR Chrome Plastic Bottle Trap

 Product Data Sheet Coronus 500mm Exposed Trap Urinal

£266.00

£258.00

 (ex VAT) 3% Off
3 Urinal Set - Coronus 500: Exposed Trap, Flushpipes  & China Cistern

3 Urinal Set - Coronus 500: Exposed Trap, Flushpipes & China Cistern

3GW50EXP1

THIS PRODUCT IS USUALLY DELIVERED IN 2-3 WORKING DAYS VIA OUR STANDARD PALLET SERVICE
Please check pallet service delivery restrictions in the "About Delivery" tab before ordering.

The Coronus is a great value 500mm height wall mounted urinal in vitreous china.

Bowl Dimensions:  Height = 500mm  Width = 383mm  Projection from wall = 303mm

•     Standard spreader flushing urinals
•     Shallow open bowl design
•     Water guide channels for efficient flushing
•     Large 500mm Height by 383mm Width
•     Similar in design to more expensive brands

Pack Type: For exposed installation, with the cistern mounted on the same side of the wall above the urinal. Includes everything required from the cistern down to the waste traps.

Pack includes:

- 3 x Coronus 500 Urinals
- 1 x 9 litre China Auto Cistern c/w Hangers, Syphon & Petcock
- 1 x Exposed Stainless Steel Sparge Pipe Set with pipe clips (for 3 urinals)
- 3 x Top Entry Flushing Spreaders
- 3 x Pair of  Urinal Wall Hangers
- 3 x Domed 32mm Waste Outlets - White

Optional Traps:
- McAlpine C10 White Plastic Bottle Trap
- McAlpine C10AR Chrome Plastic Bottle Trap

 Product Data Sheet Coronus 500mm Exposed Trap Urinal


£349.00

£338.00

 (ex VAT) 3% Off

Ceramic Urinals

Urinal bowls come in a wide range of shapes and sizes. The smallest urinal bowl we offer is the Armitage Shanks (Ideal Standard) Sanura 400. The "400" refers to the height of the bowl in millimetres. When deciding which urinal bowl to buy, however, the depth or "projection from the wall" is probably a more important factor.. Generally the greater the projection of the urinal bowl, the less likely that "splashing" problems will occur. The Sanura 400 only has a projection of 250mm wheras the most popular models, including the Coronus, Clifton and Sanura 500 have a projection of more than 300mm.

Aside from depth/projection considerations, the choice of urinal bowl is then largely about appearance.  At Gentworks, we focus on supplying the styles of urinals that have been most accepted for use in commercial washrooms for many years, so all of the models displayed are proven suitable for this purpose.  We don't currently offer the many "designer" models of urinal available on the market. In particular, we have avoided those urinal bowls with integrated siphonic traps because they are typically more expensive to buy and to fit.  The built in siphonic trap means that urine remains visible in the bowl until it is flushed.  As many users consider this unacceptable, the siphonic trap bowls should be fitted with a system which flushes immediately after use. DVS and Cistermiser offer products designed for this purpose (see 'Direct Flush' products) .
