Waterless Urinal Cartridges

Most waterless urinals require a cartridge replacement 1 to 4 times per year, depending on the model and use. We offer a range of the cartridges that we trust and are not only available within expensive third-party maintenance contracts.

Featured Products



Aquafree Urinal Maintenance Device Cartridge

Aquafree Urinal Maintenance Device Cartridge

UMDARX1

Aquafree replacement cartridges are available in the pack sizes of 1, 4, 12, 24 and 32 units.  Please use the drop down below to select the pack size required.Note that cartridges supplied have a shelf-life of approximately 15 months.

Pack includes:
Aquafree Urinal Maintenance Device cartridge designed to dispense beneficial microbes and other active ingredients over a 3 month period.
(If you do not already have Aquafree or compatible cartridges installed (e.g. UMDs from Gentworks) then please visit www.waterlessurinals.co.uk  for information about converting to waterless and relevant products.

Usage:
Aquafree cartridges should be changed every 3 months. To do this, wearing suitable gloves, simply pull vertically the used cartridge out for disposal and insert the new replacement cartridge.  The cartridges reduce the incidence of smells, blockages and, of course, water consumption.  The contents of the cartridge are designed to break down  urine and prevent odours. However, they are not able to break down hair and other debris likely to enter the waste pipes. So, if the cartridges are installed in urinals that are not being flushed, it is essential to "dose" each urinal weeklya very simple task.  For each urinal, mix 100ml of Gentworks Bactericidal Cleaner with  900ml warm water from the washroom hot tap. Pour the resulting 1 litre of diluted solution over and around the head of the cartridge. There is no need to remove the cartridge before doing so.

Cleaning:
Most odour problems result from poor cleaning practices.  The urinal should be cleaned regularly with Gentworks Bactericidal Cleaner (same dilution as for dosing), Gentworks Bio-Blue or another neutral cleaning product. Cleaning products containing acids, strong alkalis and bleaches must not be used as these will kill the active ingredients contained in the Aquafree cartridge and may lead to odours and blockages.

Safety Data Sheet

 Click PDF icon to view and save safety data sheet


£20.00

 (ex VAT)
AquaShield Waterless Urinal Maintenance Device Cartridge

AquaShield Waterless Urinal Maintenance Device Cartridge

UMDASX1

AquaShield is an alternative to the Aquafree UMD. AquaShield offers the same fitment while featuring an elevated concentration of biological material in the cartridge top, rather than the stem.

AquaShield replacement cartridges are available in the pack sizes of 1, 4, 12, 24 and 36 units.  Please use the drop down below to select the pack size required. Note that cartridges supplied have a shelf-life of approximately 6 months.

Pack includes:
AquaShield Urinal Maintenance Device cartridge designed to dispense beneficial microbes and other active ingredients over a 3 month period.

Usage:
AquaShield cartridges should be changed every 3 months. To do this, wearing suitable gloves, simply pull vertically the used cartridge out for disposal and insert the new replacement cartridge.  The cartridges reduce the incidence of smells, blockages and, of course, water consumption.  The contents of the cartridge are designed to break down  urine and prevent odours. However, they are not able to break down hair and other debris likely to enter the waste pipes. So, if the cartridges are installed in urinals that are not being flushed, it is essential to "dose" each urinal weeklya very simple task.  For each urinal, mix 100ml of Gentworks Bactericidal Cleaner with  900ml warm water from the washroom hot tap. Pour the resulting 1 litre of diluted solution over and around the head of the cartridge. There is no need to remove the cartridge before doing so.

Cleaning:
Most odour problems result from poor cleaning practices.  The urinal should be cleaned regularly with Gentworks Bactericidal Cleaner (same dilution as for dosing), Gentworks Bio-Blue or another neutral cleaning product. Cleaning products containing acids, strong alkalis and bleaches must not be used as these will kill the active ingredients contained in the AquaShield cartridge and may lead to odours and blockages.

£22.00

 (ex VAT)
Aquafree Cartridge for Spectrum Urinals

Aquafree Cartridge for Spectrum Urinals

UMDSPECX1

The Twyford Spectrum urinal bowl can be challenging to maintain as, rather than a regular 38mm drain at the bottom of the bowl, it has a smaller 32mm drain at the rear which is particularly prone to blockages. The Aquafree Spectrum Urinal Maintenance Device is designed to fit snuggly into this drain hole, helping to prevent debris entering the waste pipes whilst dispensing the active ingredients to combat blockages and odours.

(Note that the Twyford Spectrum bowl is shown for illustrative purposes only.)

Pack Size:

Spectrum cartridges are available in the pack sizes of 1, 4, 12, 24 and 32 units. Please use the drop down at the bottom of this page to select the pack size required. Note that cartridges supplied have a shelf-life of approximately 15 months.

 Usage:

The Spectrum cartridge is simply inserted into the 32mm drain hole of the Twyford Spectrum urinal bowl.  The contents of the cartridge are designed to break down  urine and reduce the potential for odours and blockages. However, they are not able to break down hair and other debris likely to enter the waste pipes. So, it is essential to "dose" the urinal weekly -  a very simple task.  For each urinal, mix 100ml of Gentworks Bactericidal Cleaner with  900ml warm water from the washroom hot tap. Pour the resulting 1 litre of diluted solution over and around the head of the cartridge. There is no need to remove the cartridge before doing so.

 Cleaning:

Most urinal odour problems, waterless or not, result from poor cleaning practices.  The urinal should be cleaned regularly with Gentworks Bactericidal Cleaner (same dilution as for dosing), Gentworks Bio-Blue or another neutral cleaning product. Cleaning products containing acids, strong alkalis and bleaches must not be used as these will kill the active ingredients contained in the Aquafree Urinal Maintenance Device and may well lead to odours and blockages.

£23.00

 (ex VAT)
GW6-15 Waterless Urinal Replacement Valve Core

GW6-15 Waterless Urinal Replacement Valve Core

GW615VX1

This is the replacement valve core cartridge for the Tanami waterless urinals and other bowls fitted with the GW6-15 or GW15 systems. It includes the same "snorkel valve" technology as its larger cousin, the GW6, giving more than 9 litres

per minute drainage. The latest GW6-15 also has much greater resistance to bleach due to the two valves in the housing being manufactured with a special silicone formula.

Click here for retrofit kit used to install the GW6-15 for the first time.

The GW6-15 has been designed to allow odour-free operation in waterless urinals as well as those urinals being flushed only every few hours or days.

The unit has good tolerance of most standard cleaning chemicals with a pH of 4 to 10. Harsher cleaning products may reduce the life of the silicone valves within this cartridge.

Features:
- typically lasts 4 to 6 months
- no chemical sealant required
- unique 'dual skirt' valve to prevent odours
- tolerant of sluicing or flushing to help keep waste pipes clear
- drainage rate of over 9 litres/min
- can be used as waterless or with flushing (no trap or u-bend required)
- relatively small disposable component and long life reduces impact on landfill

About GW6-15, including test results

Click here for cleaning and maintenance guidance

Recommended to be used in conjunction with Bactericidal Cleaner; sluicing once every 2  to 4 weeks, to extend valve life and keep waste pipes clear. If Bactericidal Cleaner is not available, use soap and warm water instead.

£27.00

 (ex VAT)
GW6V Waterless Urinal Replacement Valve Core

GW6V Waterless Urinal Replacement Valve Core

GW6VX1

This is the replacement valve core for urinals fitted with the GW6 waterless urinal system, including the retrofit housing for Aridian as well as the Karoo, Sahara, Accona, Tabernas, and other urinal models.

The unit is tolerant of most standard cleaning chemicals and water but avoid using bleach and cleaning products with more than 10% acid content.  Harsh cleaning products may reduce the life of the silicone valves within this cartridge.

Features:

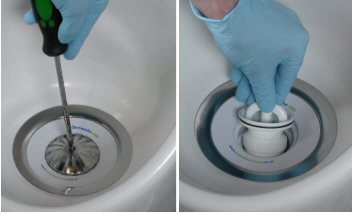

- easy to fit into the GW6 cartridge - only a crosshead screwdriver needed
- typically lasts at least 6 months, and up to 1 year
- no chemical sealant required
- unique 'dual skirt' valve to prevent odours
- unique pressure equalisation system to maximise drainage
- tolerant of sluicing to help keep waste pipes clear
- relatively small disposable component reduces impact on landfill

Click here for cleaning and maintenance guidance

Recommended to be used in conjunction with Bactericidal Cleaner; sluicing once every 2  to 4 weeks, to extend valve life and keep waste pipes clear.

Below you can choose packs of 1, 4, 8, 12, 16, 24 or 32 cartridges to take advantage of applicable volume discounts.

£34.00

 (ex VAT)
GW6 Long-Life Dry Cartridge for Aridian & Falcon

GW6 Long-Life Dry Cartridge for Aridian & Falcon

GW6X1

The GW6 cartridge fits Aridian waterless urinal bowls and others that take 118mm diameter cartridges. It is tolerant of the standard cleaning chemicals and practices that may have a detrimental impact on the performance of other types of waterless urinal system. This product now includes the latest version of the GW6 valve core, with the special pressure release system for greater drain pressure tolerance and increased flow rate.

This unit is tolerant of most standard cleaning chemicals and water but avoid using bleach and cleaning products with more than 10% acid content. Harsh cleaning products may reduce the life of the silicone valves within this cartridge.

Note: At the request of some trade customers, this cartridge is also available with no printing on the surface. "GW6" is a registered trademark of Gentworks Ltd.

Ideal for sites where:
• odours are perceived to be a problem because of sealant degraded by the use of incompatible cleaning chemicals
• the cost of consumables and servicing is considered to be unacceptable
• blockages occur regularly in waste pipes

Features:
• replaceable valve core typically lasts over 6 months, and up to to 1 year
• unique 'dual skirt' valve to prevent odours
• unique pressure equalisation system to increase flow
• no chemical sealant required
• tolerant of regular sluicing to help keep waste pipes clear
• when the included GW6 valve core eventually needs replacing, it is simple to change by just using a standard crosshead screwdriver
• cartridge housing is push-fit but can be easily removed in the unlikely event of damage

Recommended to be used in conjunction with Bactericidal Cleaner; sluicing once every 2 to 4 weeks to help keep waste pipes free from blockages.

MORE INFORMATION about the GW6

Replaceable valve cores from £34 (excl.VAT)

£39.00

 (ex VAT)
Falcon HPKV SE000 High-Performance Key Valve for Waterless Urinals

Falcon HPKV SE000 High-Performance Key Valve for Waterless Urinals

FALCHPKVX1
Falcon HPKV SE000 High Performance Key Valve for Waterless Urinals.

This model uses an innovative "bell-valve" promising a much faster flow than previous models, while still preventing odours.

The Key-Ring dispenses ingredients  that help prevent blockages in the waste pipes. As the contents dissolve with use, the Key-Ring also acts as an indicator of when the cartridge needs changing.
38mm for standard 1 ½” BSP waste outlet.

Genuine replacement for Falcon HPKV SE000 retrofit kits and compatible with some Duravit and Lecico branded waterless urinals.

This product has the part number SE000 engraved into the plastic on the stem and has two locating pins.

UPC 700461826774

£41.00

 (ex VAT)
S6282 Falcon Velocity Replacement Cartridge for Aridian

S6282 Falcon Velocity Replacement Cartridge for Aridian

S6282X1

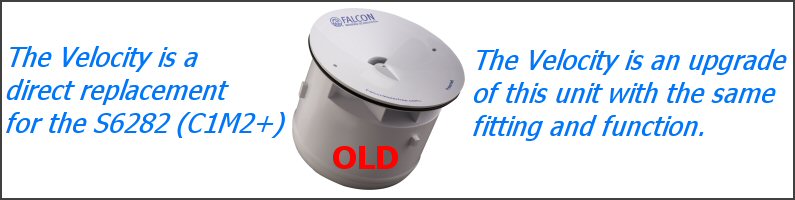

The Velocity is the latest design of replacement cartridge from Falcon Waterfree for Armitage Shanks Aridian and Falcon waterless urinal bowls. The previous S6282 "Legacy" Falcon cartridge is no longer manufactured and therefore will only be available while stocks last. The Velocity cartridge lasts longer than the previous model due to faster flow through the internal trap and less splashing within the trap cavity, resulting in slower build-up. It is also easier to identify when the cartridge needs replacing because the blue sealant fluid will cover an "indicator" when the cartridge is full. All the details on the Velocity cartridge can be viewed by clicking on the product data sheets tab above.
Every cartridge box includes:
- Falcon Waterfree Velocity cartridge for use with Armitage Shanks Aridian or Falcon Waterfree urinals
- Sachet of Sealant
- Metal Cartridge Key - Plastic Gloves for handling used cartridge
- Sanitary Bag for disposal of used cartridge
- Instruction Sheet
- Sanitary Bag for disposal of used cartridge
- Instruction Sheet

Buy More, Save More with Our Multi-Buy Options!
From £32.00 per cartridge (excluding VAT)

Pack Sizes:
Choose packs of 1, 4, 8, 12, 16 & 24 cartridges to take advantage of applicable volume discounts.  Also available in cases of 32 for maximum discount (£32 per cartridge) and with FREE DELIVERY - Please click here.

£41.00

 (ex VAT)
Ideal Standard Aquanil RV06167 Replacement Waterless Urinal Cartridge

Ideal Standard Aquanil RV06167 Replacement Waterless Urinal Cartridge

RV06167X1

Replacement Aquanil RV06167 waterless urinal cartridge as used in the Ideal Standard & Armitage Shanks range of Aquanill waterless urinals.

The Ideal Standard/Armitage Shanks Aquanil waterless cartridge system is fitted to the following urinal models:
Sphero (waterless models only)
Contour HygenIQ Waterless
Sanura HygenIQ Waterless

The cartridge consists of a valve and a fragrance ring, the valve has a non-return feature allowing liquids to pass through before closing.
As well as creating a pleasant fragrance, the green ring acts as a life cycle indicator. During its life the green ring fades until it is transparent, at this stage the cartridge should be checked to see if it needs replacing.
The service key is available as an option if required.

This product has the part number SE037 engraved into the plastic on the stem and has three locating pins.

£43.00

 (ex VAT)
Case of 32x Falcon Velocity S6282 Cartridges for Aridian (S628367)

Case of 32x Falcon Velocity S6282 Cartridges for Aridian (S628367)

S628367

Case of 32 Falcon Velocity cartridges at the special price of £32 per cartridge and FREE DELIVERY. If you require more than 2 cases, please call for a quote as we can often give additional discounts. Click here for smaller quantities of 1, 4, 8,16, or 24 Velocity cartridges.

The Velocity is the latest design of replacement cartridge from Falcon Waterfree for Armitage Shanks Aridian and Falcon waterless urinal bowls. The previous S6282 "Legacy" Falcon cartridge is no longer manufactured and therefore will only be available while stocks last. The Velocity cartridge lasts longer than the previous model due to faster flow through the internal trap and less splashing within the trap cavity, resulting in slower build-up. It is also easier to identify when the cartridge needs replacing because the blue sealant fluid will cover an "indicator" when the cartridge is full. All the details on the Velocity cartridge can be viewed by clicking on the product data sheets tab above.

Every cartridge box includes:
- S6282 Falcon Waterfree Velocity cartridge for use with Armitage Shanks Aridian or Falcon Waterfree urinals
- Sachet of Sealant
- Metal Cartridge Key - Plastic Gloves for handling used cartridge
- Sanitary Bag for disposal of used cartridge
- Instruction Sheet
- Sanitary Bag for disposal of used cartridge
- Instruction Sheet

UPC 1815900007

£1,024.00

 (ex VAT)
