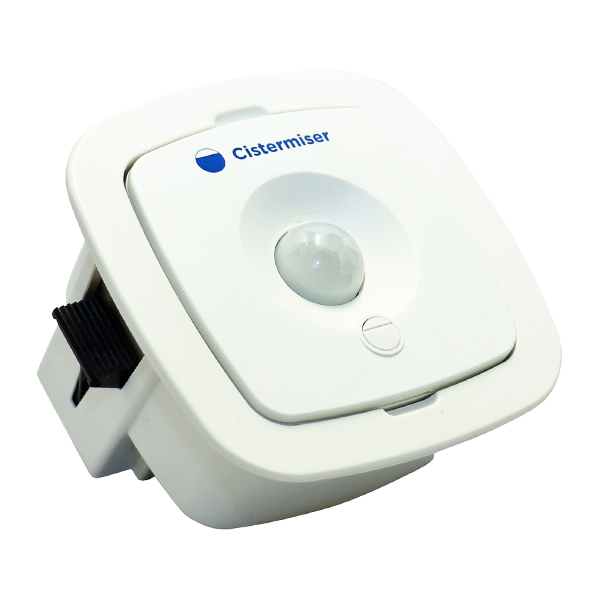

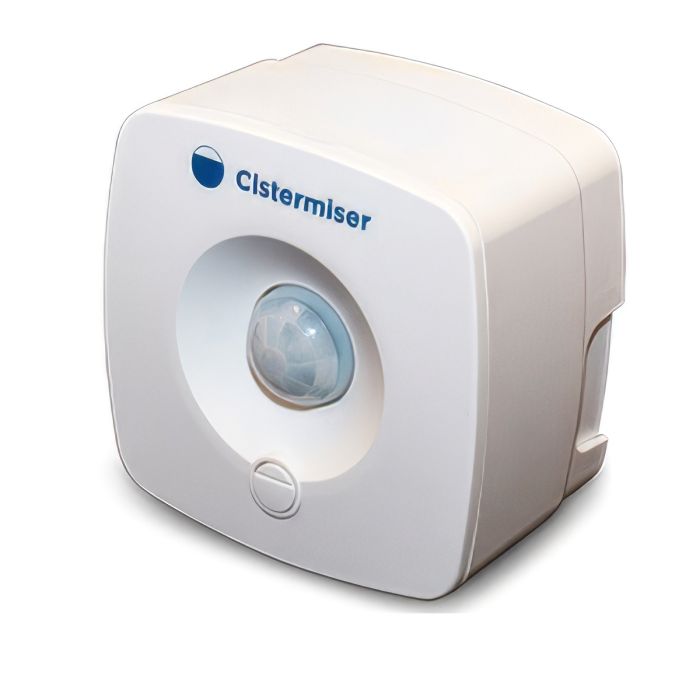

Cistermiser - IRC Sensor with Ceiling Kit

Cistermiser - IRC Sensor with Ceiling Kit


Cistermiser - IRC Sensor with Ceiling Kit

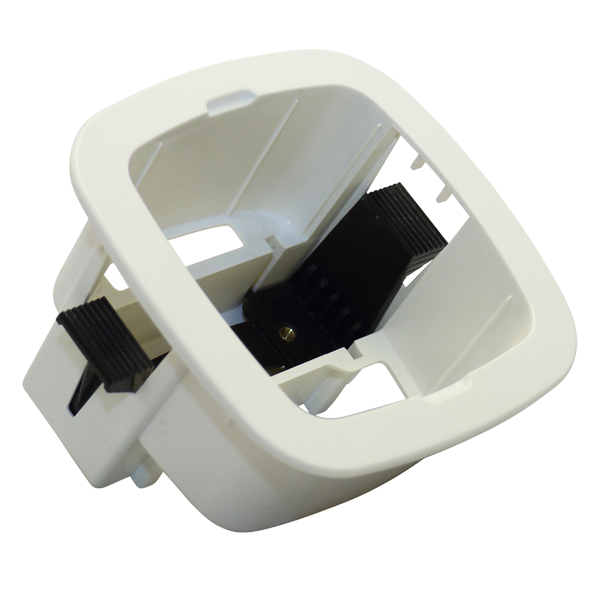

Ceiling kit for recessed installations included

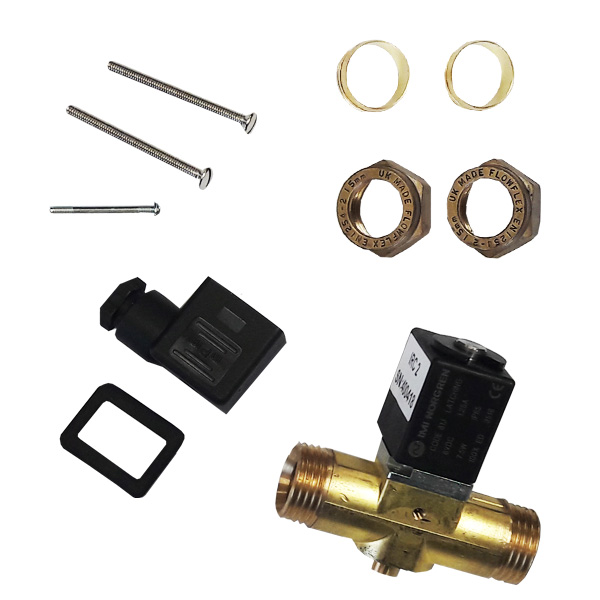

Solenoid valve included
Ref 402EIRC
Our Price (ex VAT)
Price (inc VAT)

£169.00
£202.80

Quantity
Delivery Time 1 to 2 working days


  • Description

    New-look with with improved aesthetics

    The IRC has the advantage of being packaged for installation onto a wall, recessed into a false ceiling or directly onto the water supply pipe. The included solenoid valve is plumbed into the water supply to the urinal cistern. The connection to the control sensor box can be made by mounting the box directly onto the solenoid valve or remote from the valve, using the 'floating socket'.

    The unit is supplied with mains and battery power options, so no additional external transformer is required.

    How it works:
    When movement is detected a pulse is sent to open the solenoid valve and water flows to the cistern. At the same time, the PIR sensor is switched off. The initial open period is 25 mins after which time PIR power is restored. Any occupancy in the next 5 minutes will cause the cycle to repeat (30min total cycle). If no occupancy, then the solenoid stays closed till the next occupancy is detected. Flow rate to the cistern is adjusted via the flow regulator in the valve. Generally, this should be set so that the cistern fills and flushes once in every 30 minute cycle. If there is no occupancy in 12 hours, the solenoid will automatically open for 30 minutes to provide a hygiene flush to the urinals and pipework.

    Installation instructions for Cistermiser Infra-Red IRC valve.
  • About Delivery
    Orders for flush controls are almost always despatched on an overnight service on the same working day if the order is received before 3:30pm. The products will be sent on the next working day if the order is made after then. Normal delivery to a UK mainland address via UPS couriers costs £10 (excluding VAT) per order, irrespective of quantity,

    For locations outside of the UK mainland, including UK islands and Ireland, delivery costs will vary depending upon the size and weight of the consignment. Please call 0345 202 4535 for a quote.

    The delivery times stated for this product are representative of what we achieve in 95% of cases for this specific product. If we have reason to believe that one or more of the items in your order will not be delivered within the stated time, we will contact you as soon as possible with a new delivery date, giving the option to cancel the order. Please note that we are unable to specify the time of day your order will be delivered and all goods must be signed for.

  • More Product Info


    Mounting
    The control box with the sensor  can be mounted directly onto the solenoid valve or remotely on the wall or ceiling using standard electrical cable. The sensor module can be surface mounted using a standard patress box (not included) or recessed into a suspended ceiling using the 'flush mounting kit', which is included.

    Power consumption
    If using batteries, 4x1.5 Alkaline type LR6 cells (not supplied) are required. Battery life of up to 3 years depending on battery quality and washroom use / operating frequency.

    Features:
    - reduced water consumption by up to 80%
    - reliable and low maintenance
    - passive infra-red sensor, occupancy detection
    - single valve output
    - adjustable flow rate
    - janitorial flush (if sensor not triggered for 12 hours)
    - WRAS approved Product



    Gentworks note: During site surveys, we find that many IRC2 models have not been correctly calibrated to ensure that a flush only occurs once when the sensor is activated. Many flush 3 or 4 times during the 30 minute period because the flow to the solenoid valve has not been set to ensure the cistern only fills once in that time. Please follow the manufacturers' calibration instructions.
