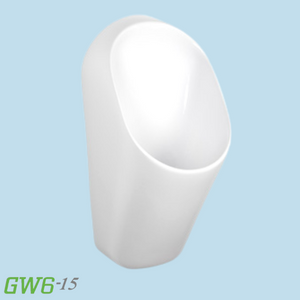

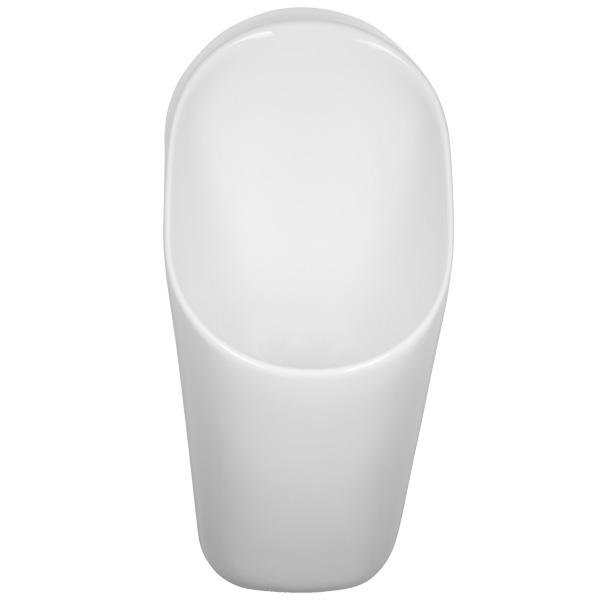

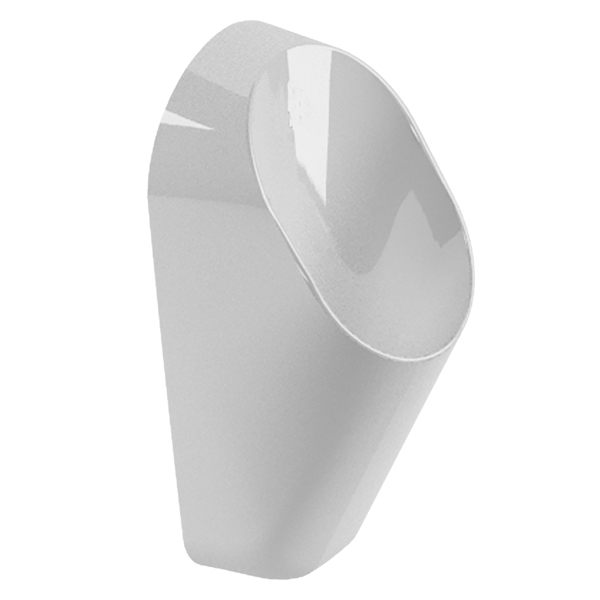

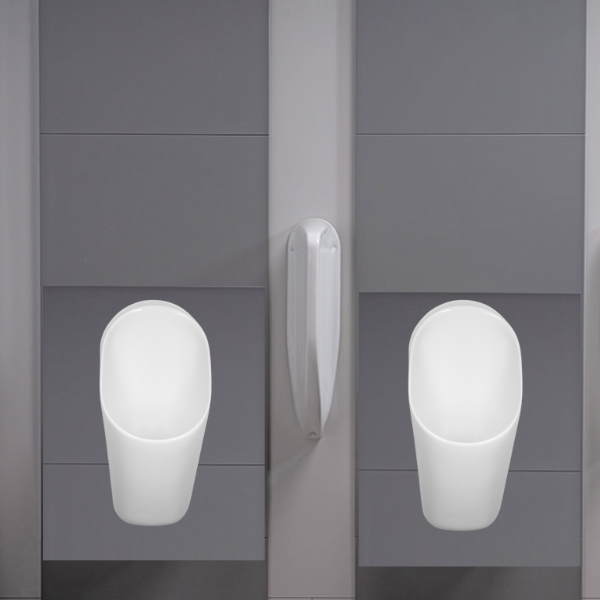

    GW615 Patagonian Waterless Urinal For Concealed Installations

    Key Benefits:

    • unique dual valve technology for added protection against odours
    • small, replaceable GW615 valve core typically lasts for 6-12 months
    • high drainage rate
    • waste pipe connection must be horizontal (e.g. through panel)
    • reduced water and maintenance costs
    • manufactured in high quality cermic
    • Stylish design ideal for high end look washrooms
    • water saving reduces energy use and emissions
    • lower installation costs—no water or electrics


    GW615 Patagonian Waterless Urinal

    YouTube about GW6-15The GW6-15 Patagonian ceramic waterless urinal bowl uses the same valve and "snorkel" technology as the popular GW6 cartridge.The urinal is manufactured in ceramic and is suitable for concealed pipework. The Patagonian now incorporates the latest version of the GW6-15 valve core with much faster drainage - approximately 12 litres per minute. This allows for more effective sluicing of the waste pipes to keep them even cleaner. Chemical resistance has also been much improved, particularly against bleach, to which silicone valves are particularly vulnerable. The dual valves are now manufactured in a special silicone to reduce the chance of damage from harsh cleaning chemicals, although these are still best avoided in order to maximise the life of the cartridge.

    Instead of a fluid barrier, the GW6-15 valve uses a silicone double-skirt valve which is tolerant of both water and common cleaning chemicals.

    See replacement valves for GW6-15

    - 1 x GW615 Patagonian concealed ceramic urinal
    - 1 x Set of wall hangers
    - 1 x GW615 waterless waste with service key

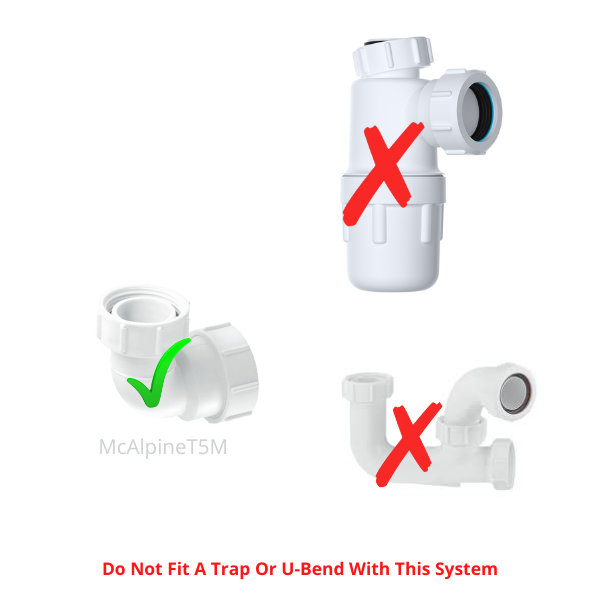

    Recommended Waste Fittings
    For horizontal waste pipe— McAlpine T5M or T5M-A 1½" 90° Multifit Bend x BSP Coupling

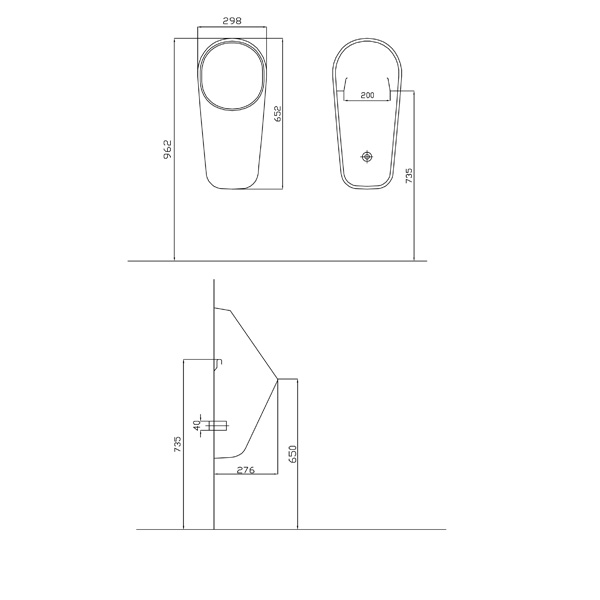

     Patagonian-GW6 Product Data Sheet

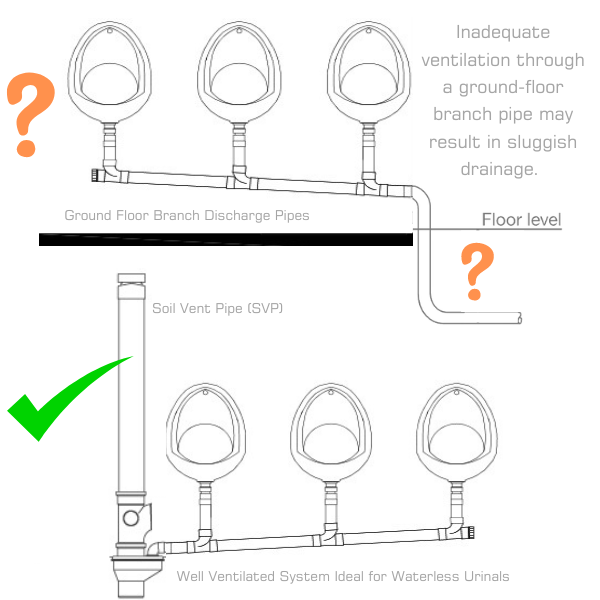

    How to avoid blockages in waste pipes
    Whilst the waste pipes of waterless urinals block less frequently than for most flushed urinals, uric acid salts can still form a sludge which eventually could cause a blockage. Sludge can be a particular problem if the waste pipes are shared with sinks or are poorly configured.  Gentworks recommends periodic sluicing with Bactericidal Cleaner to break down this sludge and carry it away into the main drain. The GW6-15 valve can be sluiced regularly; once every 2 to 4 weeks is recommended.  The solution used should be approximately 1 part Bactericidal Cleaner to 9 parts warm water from the washroom hot tap. If Bactericidal Cleaner is not available, using some soap in warm water instead will aid drainage.
